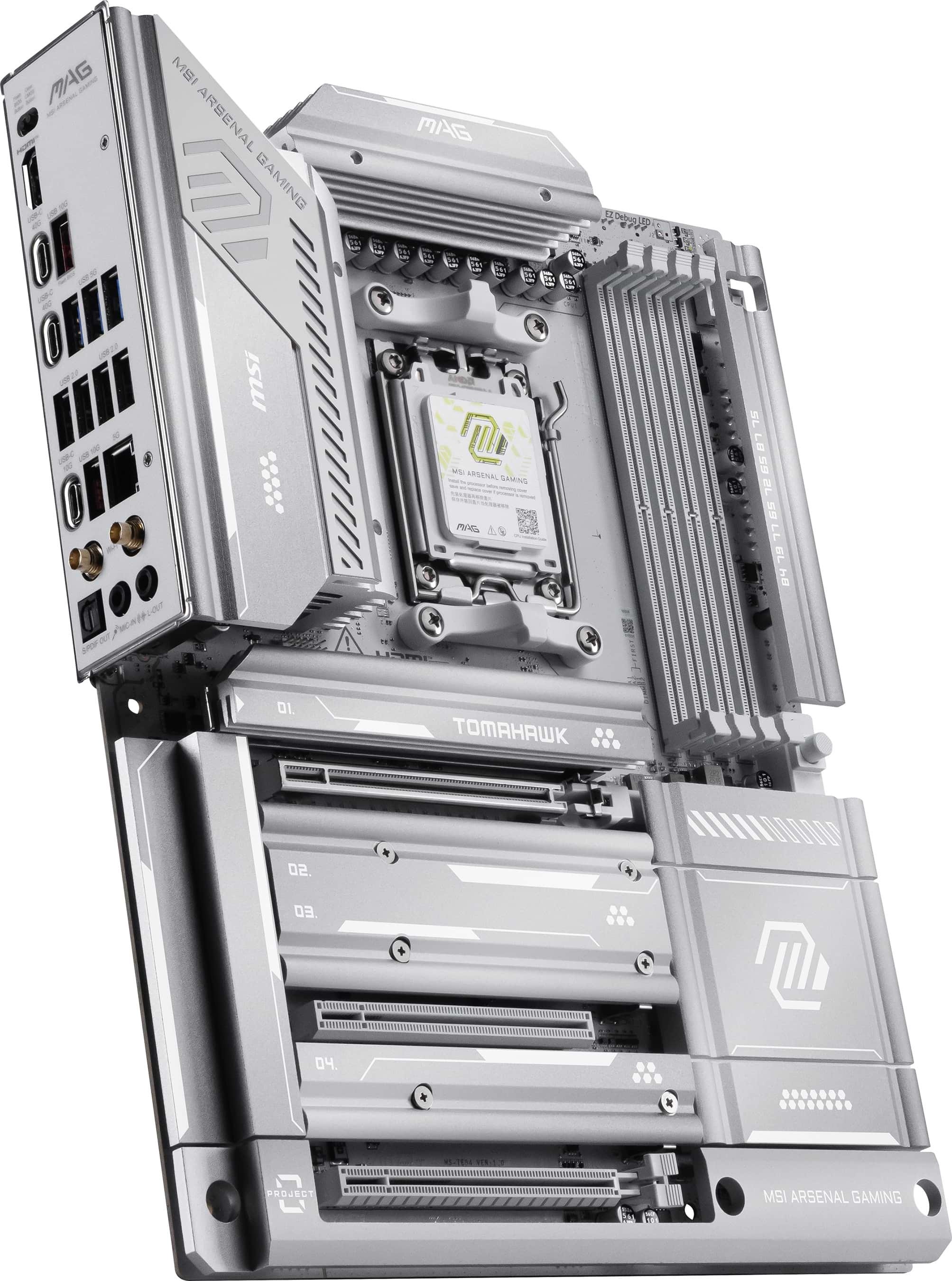

MSI MAG X870E TOMAHAWK MAX WIFI PZ AMD X870E Ryzen Socket AM5 ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

MSI MAG X870E TOMAHAWK MAX WIFI PZ AMD X870E Ryzen Socket AM5 ATX Desktop Motherboard

Product ID: 53932

Be the first to review this product

- ATX Form Factor (Back-Connect)
- AMD X870E Chipset
- Socket AM5 Supports Ryzen 7000, 8000 & 9000 Series Processors
- 4x DDR5 DIMM Slots, Supports Up to 256GB (4x64GB)
- Supports Up to DDR5-8400 (OC)
- Supports AMD EXPO Modules
- Supports CUDIMM Clock Driver Bypass Memory
- 1x PCIe 5.0 x16 Slot (x16 Physical)
- 1x PCIe 4.0 x4 Slot (x16 Physical)
- 1x PCIe 3.0 x1 Slot (x16 Physical)
- 1x M.2 22110/2280 PCIe 5.0 x4 NVMe SSD Slots
- 1x M.2 2280/2260 PCIe 5.0 x4 NVMe SSD Slots
- 2x M.2 2280/2260 PCIe 4.0 x4 NVMe SSD Slots
- 4x SATA 3.0 Ports
- 2x USB 40Gbps Type-C Ports with DisplayPort
- 1x USB 10Gbps Type-C Port
- 2x USB 10Gbps Type-A Ports
- 3x USB 5Gbps Type-A Ports
- 4x USB 2.0 Type-A Ports
- 1x HDMI 2.1 (FRL) Port
- 2x 3.5mm Audio Jacks, 1x Optical S/PDIF Audio Out
- 2x SMA Connectors
- Realtek 5 Gigabit Ethernet RJ-45 LAN Port
- WiFi 7 Tri-Band Adapter, Bluetooth 5.4
- Realtek ALC4080 High-Definition Audio Codec
- 14+2+1 Duet Rail Power System
- MSI EZ PCIe Release Quick-Release Mechanism
- MSI EZ Digit Debug LED
- MSI Mystic Light RGB Sync
- Supports Windows 11
- 3 Year Warranty

88 Products

Out of Stock

Add to Wishlist

Customers Who Viewed This Product Purchased

ASUS ROG Strix X870E-E Gaming WIFI AMD X870E Ryzen Socket AM5 ATX...

In stock with Wootware

R14,199.00

R10,499.00

Save: R 3,700!

Gigabyte X870E AORUS ELITE WIFI7 AMD X870E Ryzen Socket AM5 ATX D...

In stock with Wootware

R9,399.00

R6,499.00

Save: R 2,900!

2 Review(s)

Gigabyte X870E AORUS PRO X3D WIFI 7 AMD X870E Ryzen Socket AM5 AT...

In stock with Wootware

R9,799.00

R7,999.00

Save: R 1,800!

ASUS ROG CROSSHAIR X870E HERO BTF AMD X870E Ryzen Socket AM5 ATX ...

In stock with Wootware

R16,999.00

R13,999.00

Save: R 3,000!

Gigabyte X870E AORUS ELITE X3D WIFI7 AMD X870E Ryzen Socket AM5 A...

In stock with Wootware

R8,799.00

R7,499.00

Save: R 1,300!

2 Review(s)

1 Review(s)

Gigabyte X870E AORUS PRO WIFI 7 AMD X870E Ryzen Socket AM5 ATX De...

In stock with Supplier

R8,273.00

2 Review(s)

MSI MPG X870E EDGE TI WIFI AMD X870E Ryzen Socket AM5 ATX White D...

In stock with Supplier

R8,446.00

Product Description
Additional Information
Reviews (0)

Product Description

SPECIFICATIONS
Brand	MSI
Series	MAG
Model	MAG X870E TOMAHAWK MAX WIFI PZ
Chipset	AMD X870E
CPU	Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
CPU	Socket AM5
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB
	Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
	Ryzen 9000 Series Processors max. overclocking frequency:
	- 1DPC 1R Max speed up to 8400 MT/s
	- 1DPC 2R Max speed up to 6400 MT/s
	- 2DPC 1R Max speed up to 6400 MT/s
	- 2DPC 2R Max speed up to 6400 MT/s
	Supports AMD POR Speed and JEDEC Speed
	Supports Memory Overclocking and AMD EXPO
	Supports Dual-Channel mode
	Supports Non-ECC, Un-buffered memory
	Supports CUDIMM, Clock Driver bypass mode only*
	*CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
	- The DIMM slots on this motherboard have double-sided latches.
	- Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics	1x HDMI
	Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz*
	2x Type-C DisplayPort
	USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz*
	*Available only on processors featuring integrated graphics
	**Graphics specifications may vary depending on the CPU installed
Slot	3x PCI-E x16 slot
	PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
	PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
	PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
	PCI_E1 slot
	- Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)
	- Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
	- Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
Audio	Realtek ALC4080 Codec
	7.1-Channel USB High Performance Audio
	Supports up to 32-bit/384kHz playback on front panel
	Supports S/PDIF output
Storage	4x M.2
	M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 22110/2280 devices
	M.2_2 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices
	M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices
	M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices
	4x SATA 6G
	M.2_1 slot (From CPU)
	- Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
	- Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)
	M.2_2 slot (From CPU)
	- Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
	- Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors)
	*The M2_2 slot will be unavailable when using Ryzen 8500/ 8300 Series processors.
	**USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. The USB4 host controller supports up to PCIe 4.0 x4.
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
	*RAID 5 configuration is only supported by Ryzen 9000 series processors.
	*RAID 10 for M.2 NVMe storage devices is only supported by Ryzen 9000/7000 series processors.
USB	4x USB 2.0 (Rear)
	4x USB 2.0 (Front)
	3x USB 5Gbps Type A (Rear)
	4x USB 5Gbps Type A (Front)
	2x USB 10Gbps Type A (Rear)
	1x USB 10Gbps Type C (Rear)
	1x USB 20Gbps Type C (Front)
	2x USB 40Gbps Type C (Rear)
LAN	1x Realtek 8126 5G LAN
Internal IO	1x Power Connector(ATX_PWR)
	2x Power Connector(CPU_PWR)
	1x Power Connector(PCIE_PWR 8pin)
	1x CPU Fan
	1x Combo Fan (Pump_Sys Fan)
	6x System Fan
	1x EZ Conn-header (JAF_2)
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	3x Addressable V2 RGB LED connector (JARGB_V2)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	2x Direct OC Jumper (JBCLK)
	4x USB 2.0 ports
	4x USB 5Gbps Type A ports
	1x USB 20Gbps Type C ports
Wireless LAN & Bluetooth	Wi-Fi 7
	The Wireless module is pre-installed in the M.2 (Key-E) slot
	Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
	Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
	Supports Bluetooth 5.4*, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
	**The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED Feature	4x EZ Debug LED
	1x EZ Digit Debug LED
	1x EZ Memory Detection LED
Back Panel Ports	1x Clear CMOS Button
	1x Flash BIOS Button
	2x USB 10Gbps Type-A ports
	3x USB 5Gbps Type-A ports
	4x USB 2.0 ports
	1x 5G LAN port
	1x HDMI port
	2x USB 40Gbps Type-C ports
	1x USB 10Gbps Type-C port
	1x Optical S/PDIF Out port
	Wi-Fi / Bluetooth
	Audio connectors
Operating System	Support for Windows 11 64-bit
Box Content	Motherboard
	Quick Installation Guide
	EU Regulatory Notice
	USB Driver
	2x SATA Cables
	EZ M.2 Clip II Remover
	EZ M.2 CLip II
	M.2 Plate Screw
	Cable Sticker
	EZ Wi-Fi Antenna
	1-to-3 EZ Conn-Cable (V2)
	EZ Front Panel Cable
PCB Info	Back-connect ATX
PCB Info	243.84mm x 304.8mm (WxH)
Warranty Information
Warranty	3 Year Warranty
