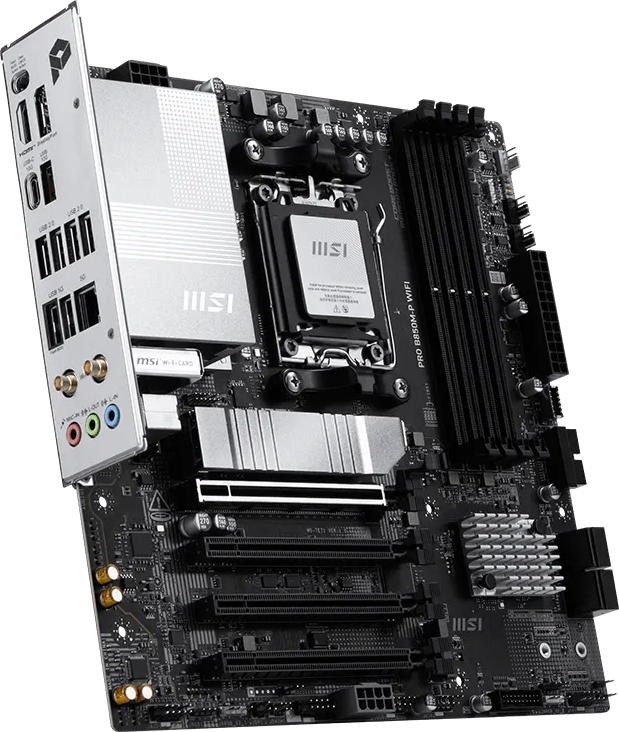

MSI PRO B850M-P WIFI AMD B850 Ryzen Socket AM5 Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

MSI PRO B850M-P WIFI AMD B850 Ryzen Socket AM5 Micro-ATX Desktop Motherboard

Product ID: 55154

In stock with Supplier

Lead time before dispatch; 1 - 2 business days

Be the first to review this product

- Micro-ATX Form Factor
- AMD B850 Chipset, Socket AM5
- Supports Ryzen 7000, 8000 & 9000 Series Processors
- 4x DDR5 DIMM Slots, Supports Up to 256GB (4x64GB)
- Supports Up to DDR5-8200MHz (OC)
- Supports AMD EXPO Modules
- Supports DDR5 CUDIMM Memory
- 1x PCIe 5.0 x16 Slot (x16 Physical)
- 3x PCIe 4.0 x1 Slot (x16 Physical)
- 1x M.2 2280 PCIe 5.0 x4 NVMe SSD Slot
- 1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot
- 1x M.2 2280 PCIe 4.0 x2 NVMe SSD Slot
- 4x SATA 3.0 Ports
- Supports Front Panel USB 10Gbps Chassis Port
- 1x USB 10Gbps Type-C
- 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-A
- 4x USB 2.0, 1x DisplayPort, 1x HDMI
- 2x Wi-Fi / Bluetooth Connectors
- 3x Audio connectors, 1x Flash BIOS Button
- Realtek 5 Gigabit Ethernet RJ-45 LAN Port
- WiFi 7 Tri-Band Adapter, Bluetooth 5.4
- Realtek ALC897 High-Definition Audio Codec
- Direct 7+2+1 Digital VRM Solution
- MSI EZ Debug POST LEDs (BOOT, CPU, MEM, VGA)
- MSI EZ Memory Detection
- MSI EZ PCIe CLIP II GPU Release Mechanism
- MSI Flash BIOS Button
- MSI Control Center Software
- Supports Windows 11
- 3 Year Warranty

132 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R3,366.00

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (0)
Questions (0)

Product Description

SPECIFICATIONS
Brand	MSI
Series	PRO Series
Model	PRO B850M-P WIFI
Chipset	AMD B850
CPU	Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
CPU	Socket AM5
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB
	Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
	Ryzen 9000 Series Processors max. overclocking frequency:
	1DPC 1R Max speed up to 8200+ MT/s
	1DPC 2R Max speed up to 6400+ MT/s
	2DPC 1R Max speed up to 6400+ MT/s
	2DPC 2R Max speed up to 6000+ MT/s
	Supports AMD POR Speed and JEDEC Speed
	Supports Memory Overclocking and AMD EXPOTM
	Supports Dual-Channel mode
	Supports Non-ECC, Un-buffered memory
	Supports CUDIMM, Clock Driver bypass mode only*
	* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
	The DIMM slots on this motherboard only have single-sided latches.
	Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics	1x HDMI
	Support HDMITM 2.1, maximum resolution of 4K 60Hz*
	1x DisplayPort
	Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
	*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	4x PCI-E x16 slot
	PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
	PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
	PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
	PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
	PCI_E1 slot
	Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)
	Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
	Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
Audio	Realtek ALC897
Audio	7.1-Channel High Definition Audio
Storage	3x M.2
	M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
	M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
	M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices
	4x SATA 6G
	M2_1 slot
	Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
	Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)
	M2_2 slot
	Supports up to PCIe 4.0 x4
	Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors)
	*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
	Supports RAID 0, RAID 1, and RAID 5 for M.2 NVMe storage devices
	*RAID 5 configuration is only supported by Ryzen 9000 series processors.
USB	4x USB 2.0 (Rear)
	4x USB 2.0 (Front)
	2x USB 5Gbps Type A (Rear)
	4x USB 5Gbps Type A (Front)
	1x USB 10Gbps Type A (Rear)
	1x USB 10Gbps Type C (Rear)
	1x USB 10Gbps Type C (Front)
LAN	Realtek 8126VB 5G LAN
Internal IO	1x Power Connector(ATX_PWR)
	1x Power Connector(CPU_PWR)
	1x Power Connector(PCIE_PWR 8pin)
	1x CPU Fan
	1x Combo Fan (Pump_Sys Fan)
	3x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Com Port (JCOM)
	1x Tuning Controller connector(JDASH)
	3x Addressable V2 RGB LED connector (JARGB_V2)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0 ports
	4x USB 5Gbps Type A ports
	1x USB 10Gbps Type C ports
Wireless Lan & Bluetooth	Wi-Fi 7
	The Wireless module is pre-installed in the M.2 (Key-E) slot
	Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps
	Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
	Supports Bluetooth 5.4**, MLO, 4KQAM
	* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
	** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
Led Feature	4x EZ Debug LED
Led Feature	1x EZ Memory Detection LED
Back Panel Ports	1x Clear CMOS Button
	1x DisplayPort
	1x USB 10Gbps Type-A
	4x USB 2.0
	1x 5G LAN
	2x Wi-Fi / Bluetooth Connectors
	3x Audio connectors
	1x Flash BIOS Button
	1x HDMI
	1x USB 10Gbps Type-C
	2x USB 5Gbps Type-A
PCB Info	M-ATX
PCB Info	243.84mm x 243.84mm
Warranty Information
Warranty	3 Year Warranty
