| SPECIFICATIONS | |||||||||||||||

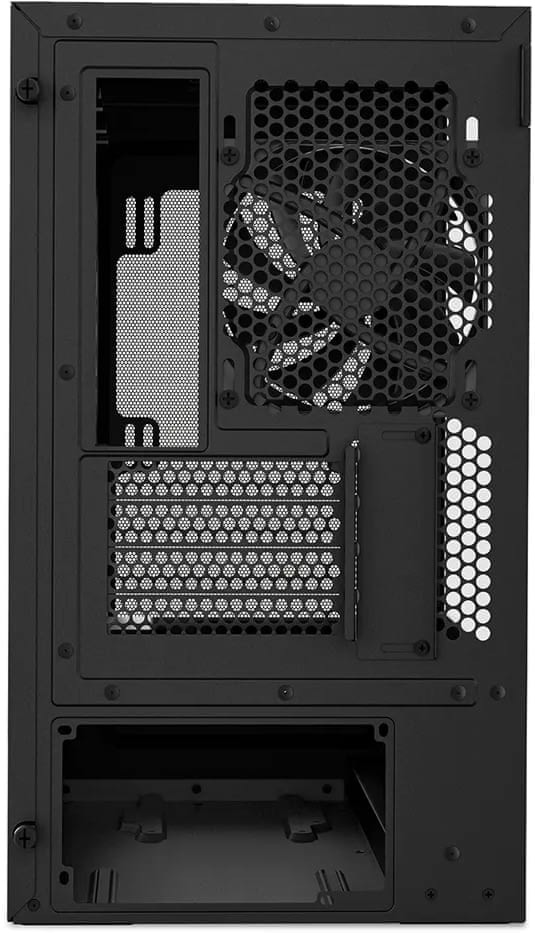

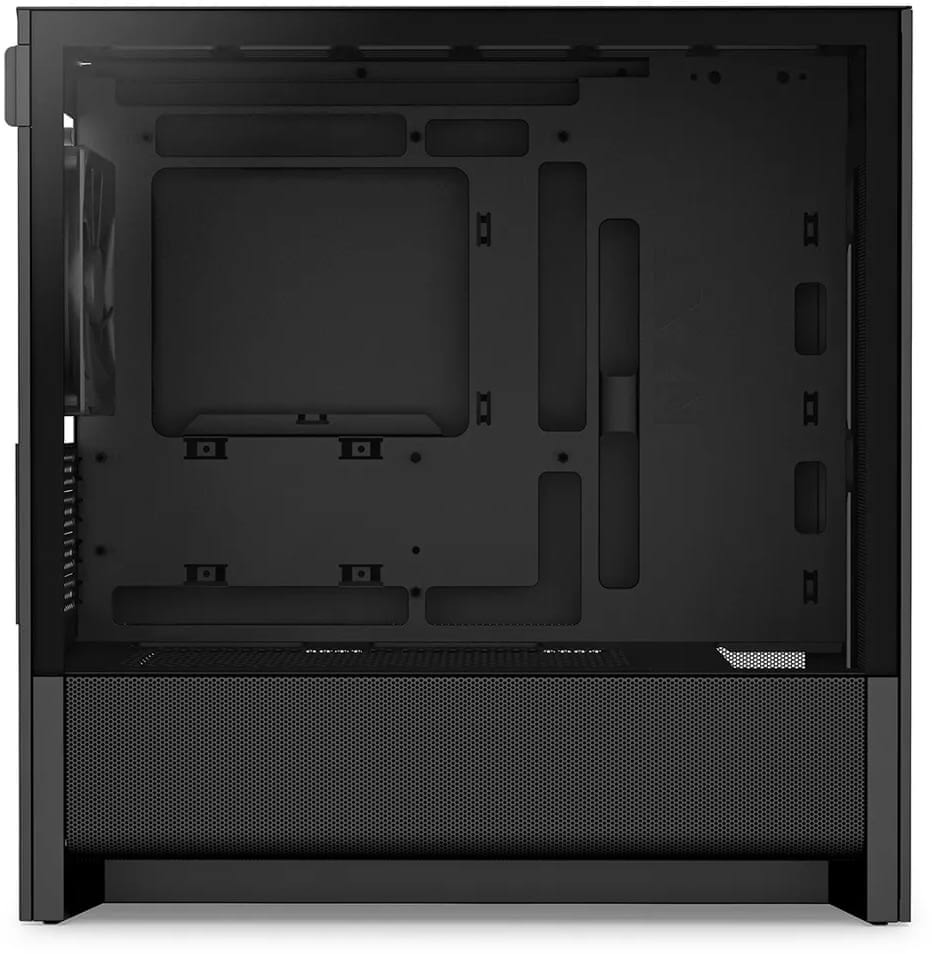

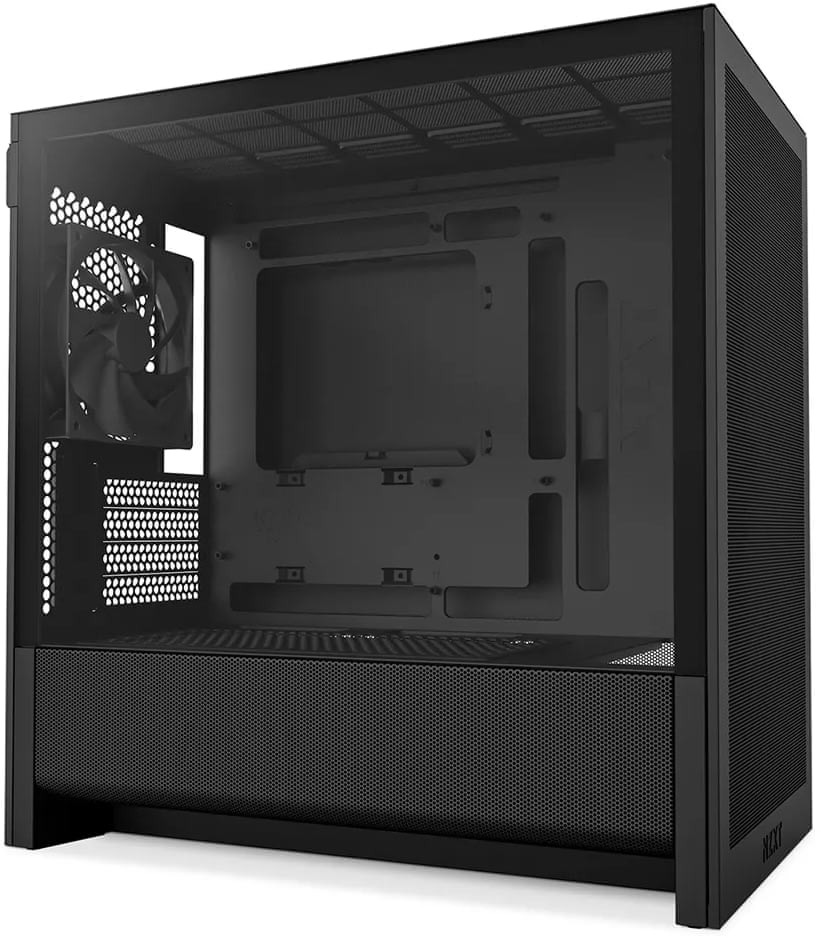

| Brand | NZXT | ||||||||||||||
| Series | H3 Flow 2025 | ||||||||||||||
| Model | CC-H31FB-01 | ||||||||||||||
| Physical Details | |||||||||||||||
| Colour | Black | ||||||||||||||
| Materials | SGCC steel | ||||||||||||||
| Side Panel | Clear Tempered Glass | ||||||||||||||
| I/O Ports | 1x USB 3.2 Type-A | ||||||||||||||
| 1x USB 3.2 Gen2x2 Type-C | |||||||||||||||
| Motherboard Support | Micro-ATX, Mini-ITX | ||||||||||||||
| Expansion Slots | 4 | ||||||||||||||
| Drive Bays | 2.5": 1+2 | ||||||||||||||
| 3.5": 1 | |||||||||||||||
| PSU Support | ATX | ||||||||||||||
| Dimensions | 400mm x 225mm x 389mm | ||||||||||||||
| Volume | 35L | ||||||||||||||
| Pre-Installed Fans | |||||||||||||||
| Rear | 1x NZXT F120Q (CV)
| ||||||||||||||
| Fan Support | |||||||||||||||
| Front | 2x 120 mm / 2x 140 mm | ||||||||||||||
| Top | 2x 120 mm / 2x 140 mm | ||||||||||||||
| Rear | 1x 120 mm | ||||||||||||||
| Bottom | 2x 120 mm | ||||||||||||||
| Radiator Support | |||||||||||||||
| Front | Up to 280 mm | ||||||||||||||
| Top | Up to 240 mm | ||||||||||||||
| Clearance | |||||||||||||||
| CPU Cooler Height Limitation | Up to 170mm | ||||||||||||||
| PSU Length Limitation | Up to 185 mm | ||||||||||||||
| GPU Length Limitation | Up to 377 mm (without front fans) | ||||||||||||||
| Up to 352 mm (with front fans) | |||||||||||||||
| Up to 317 mm (with front radiator and fans) | |||||||||||||||
| Cable Routing Clearence | Up to 31.5 mm | ||||||||||||||
| Radiator Thickness | Up to 63mm Front Radiator + Fan Thickness | ||||||||||||||
| Up to 70mm Top Radiator + Fan Thickness | |||||||||||||||
| General | |||||||||||||||
| Dust Filters | Top Removable Dust Filter | ||||||||||||||
| Fan Specifications | |||||||||||||||
| Model | F120Q (CV) | ||||||||||||||
| Speed | 1,350 ± 150 RPM | ||||||||||||||
| Airflow | 60.2 CFM | ||||||||||||||
| Static Pressure | 1.05 mmH2O | ||||||||||||||
| Noise | 24.1 dBA | ||||||||||||||
| Fan Connector | 3-pin | ||||||||||||||
| Warranty Information | |||||||||||||||
| Warranty | 2 Year Warranty | ||||||||||||||
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
- Great Case - Brad, 8 April 2026
Spacious, I can fit a 63mm AIO in front with a 305mm GPU and there is a comfortable gap. Easy to build in, cable manage and great thermals.
- Easy installation. - Ams, 30 March 2026
Case has good quality materials, panels are easy to remove, only downside is you have to mount your PSU fan facing up but it hasn't affected my GPU temps so I think it's not a problem, great ventilation all around.
