| SPECIFICATIONS | |
| Brand | Antec |
| Series | FLUX Series |
| Model | FLUX PRO WHITE (0-761345-10156-1 / 0-761345-10155-4) |
| Physical Details | |
| Colour | White |
| Materials | Aluminium |
| Steel | |
| Tempered Glass | |
| Birch Solid Wood | |
| Side Panel | 4mm Tempered Glass (side), partial mesh (lower chamber, right side) |
| Front I/O | 1x USB 10Gbps Type-C Port (Front Panel) |
| 2x USB 5Gbps Type-A Ports (Front Panel) | |
| 1x 3.5mm Combination Audio Jack (Front Panel) | |
| Motherboard Support | Supports E-ATX (330mm), ATX, Micro-ATX, Mini-ITX Motherboards |
| Supports ATX & Micro-ATX Hidden Reverse Connector Motherboards | |
| Expansion Slots | 8x Vertical PCI Slots |
| Drive Bays | 2x 2.5"/3.5" Combo Drive Bays (Removable) |
| 2x 3.5" Drive Bays (Removable) | |
| 2x 2.5" Drive Bays (Behind Motherboard Tray) | |
| PSU Support | ATX |
| Dimensions | 530 x 245 x 545mm (D x W x H) |
| Weight | 13.60kg |
| Pre-Installed Fans | |
| Top | N/A |
| Front | 3x Pre-Installed Antec Tranquil PWM 140mm Fans (Front Intake) |
| PSU Shroud | 2x Pre-Installed Antec P12R Reverse PWM 120mm Fans (Bottom Intake) |
| Rear | 1x Pre-Installed Antec Tranquil PWM 140mm Fan (Rear Exhaust) |
| Fan Support | |
| Top | 3x 120mm or 3x 140mm fans |
| Front | 3x 120mm or 3x 140mm fans |
| PSU Shroud | 3x 120mm fans |
| Rear | 1x 120mm or 1x 140mm fan |
| Radiator Support | |
| Top | 120, 140, 240, 280, 360, 420mm support |
| Front | 120, 140, 240, 280, 360, 420mm support |
| PSU Shroud | 120, 240, 360mm support |
| Rear | 120, 140mm support |
| Clearance | |
| Motherboard Tray Width | 285mm (larger E-ATX boards will fit, but may conflict with cable management grommets) |
| CPU Cooler Height Limitation | Up to 190mm |
| GPU Length Limitation | Up to 455mm |
| PSU Length Limitation | Up to 300mm with HDD cage |
| Up to 470mm without HDD cage | |
| Up to 180mm rotated with iShift bracket | |
| Cable Management | Yes, behind motherboard tray |
| General | |

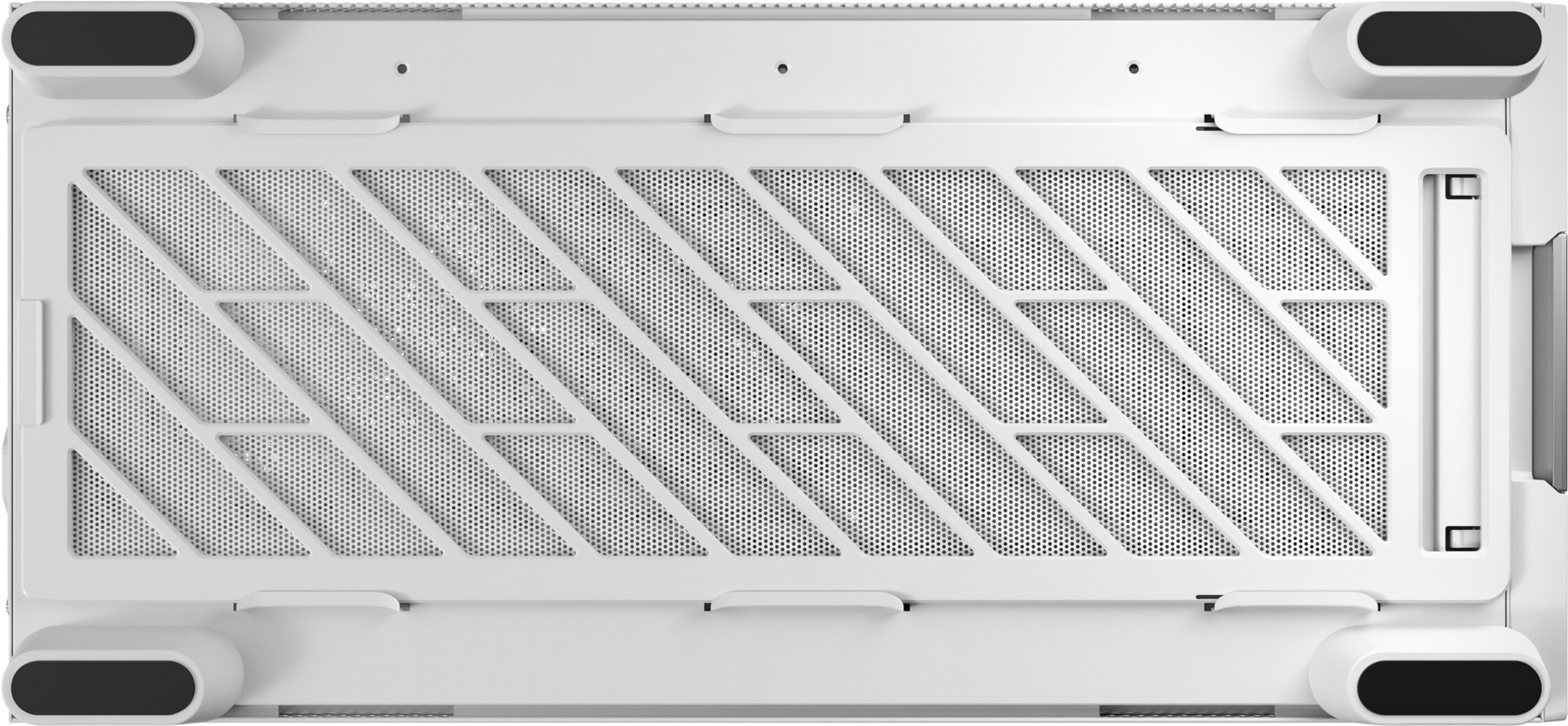

| Dust Filters | Yes, bottom removable |
| Chassis Lighting | N/A, Includes 5-way ARGB & PWM Fan splitter hub |
| Antec iUnity Display Integration supports Windows 10 & later with the iUnity app | |
| Warranty Information | |
| Warranty | 2 Year Limited Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
- Damn near perfect-edit - DJDeon0, 16 September 2025
It's so insanely good I got another one for my second workstation. Again, Antec and Wootware = perfect combo in this case (HAAAAAAAAAAAAAAAAAAA PUNSSSSS)
- Damn near perfect - DJDeon0, 7 July 2025
This case is insanely good. It exceeded my expectations, in my opinion this is much better value for money vs performance vs quality than Corsair. The Tranquil fans are incredibly quiet and push a ton of air! I've upgraded my 3 front fans to the Arctic P14 Max ones only because there wasn't any stock of these Tranquil 140mm ones. Semi Tool-less installation makes it really easy and cable mgmt is a real breeze (pun intended). My only gripe would be that some 3rd party fans can't be used as bottom intake fans as the blades hit the psu shroud and also the bottom shroud - so Antec fans or Mobius OC fans would do just fine - also the lack of 3.5" storage options might make it a bit meh for some but as a workstation PC it works damn well - especially if you have many hot components. Great service from Wootware as always!
Questions
Ask a Question
No questions yet. Be the first to ask!
