| SPECIFICATIONS | |
| Brand | HAVN |
| Series | BF 360 Series |
| Model | BF 360 Flow (HVN-CA-BF360-04) |
| Physical Details | |
| Colour | Black |
| Materials | SGCC Steel Sheet Metal |
| ABS, Nylon, Silicon, Zinc alloy, NdFeB Magnets | |
| Side Panel | Tempered Glass |

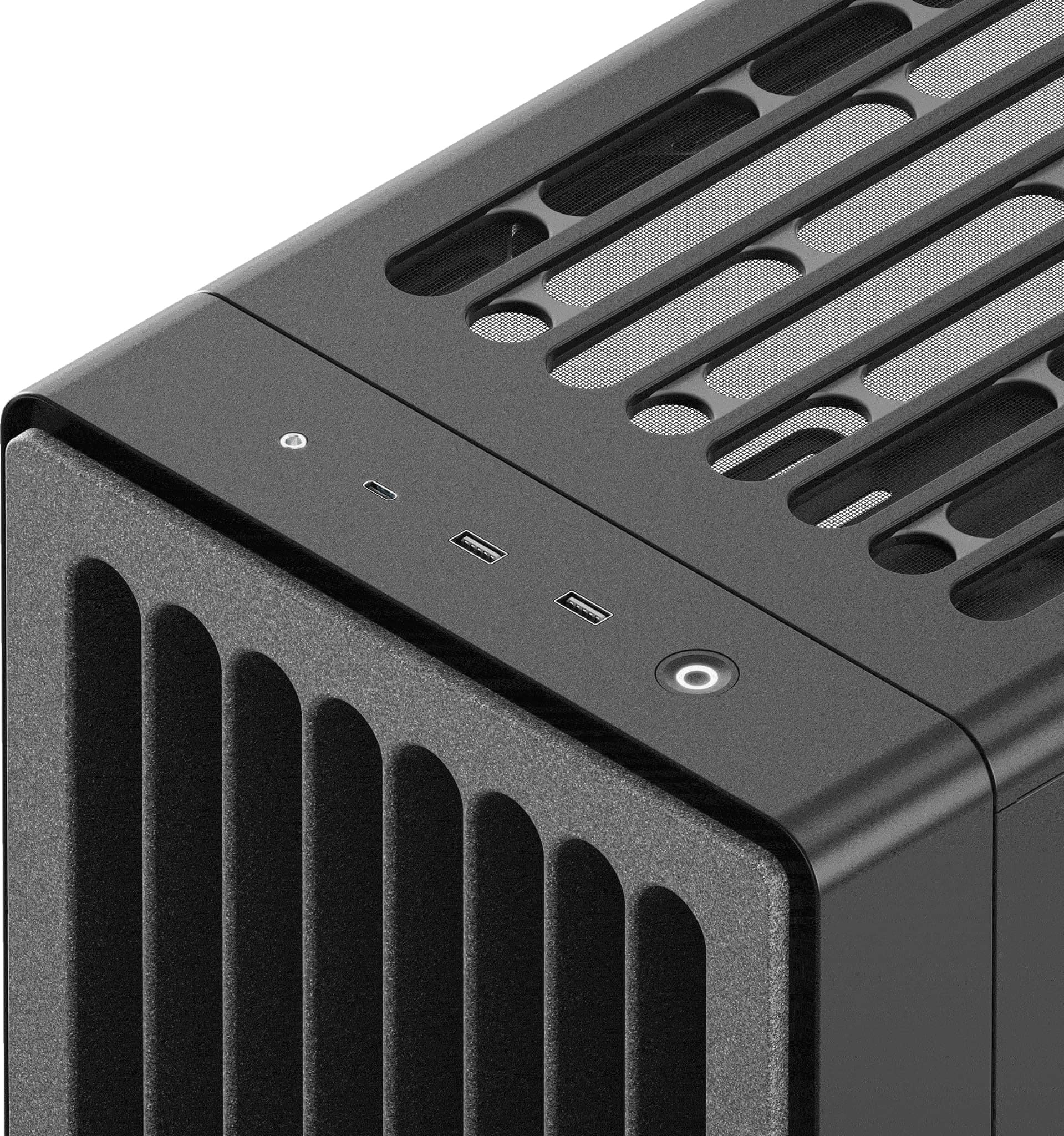

| I/O Ports | 1x USB 3.2 Gen 2 Type-C |
| 2x USB 3.2 Gen 1 Type-A | |
| 1x Audio Jack | |
| 1x Power & Reset Button | |
| Motherboard Support | E-ATX* / ATX / Micro-ATX / ITX |
| *To install an E-ATX motherboard, the built-in GPU support bracket must be removed. | |
| Expansion Slots | 7 |
| Drive Bays | Right Mount: 2 Storage Bays: 2 x 3.5'' / 4 x 2.5'' |
| Cable Management Tray: 1 Storage Bay: 1 x 3.5'' / 2 x 2.5'' | |
| Storage Bays Included: 2 x (2 x 3.5" / 4 x 2.5") | |
| PSU Support | ATX |
| Dimensions | 515mm x 254mm x 522.6mm |
| Net Weight | 14.79Kg |
| Pre-Installed Fans | |
| Front | 2x H18 Fan |
| Rear | 1x H14 Fan |
| Fan Support | |
| Front | 2x 180mm |
| Top | 2x 180mm / 2x 140mm / 3x 120mm |
| Rear | 1x 140mm / 1x 120mm |
| Fan PWM Repeater | |
| Fan Ports | 1x PWM Repeaters, 6 Ports Total |
| Location | 1x Cable Management Tray |
| Fan Connectors | 6 Ports Per Repeater x 4-pin PWM |
| Fan Rated Voltage | 12V |
| Fan Safety Current | Up to 2.6A Across 6 Ports |
| Power Connector | 1x SATA Power |
| Power Safety Current | 1x SATA Connector Power Input, 12V → 2.6A (max) |
| Radiator Support | |
| Top | 240mm / 280mm / 360mm |
| Clearance | |
| CPU Cooler Height Limitation | 195mm |
| PSU Length Limitation | Up to 200mm (Clearance - 260mm) |
| AIO Thickness Support | Up to 60mm |
| GPU Length Limitation | Length: Up to 410 mm |
| Width: Up to 195 mm | |
| 1 - 4.5 Slots | |
| Ram Clearence | If the Radiator & Fans Thickness is Greater than 80 mm: 280 mm - 40 mm / 360 mm - 60 mm |
| General | |
| Dust Filters | Front, Top & Rear Bottom |
| Warranty Information | |
| Warranty | 2 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
- Great Airflow - TAAL, 3 March 2026
The case has great airflow and is easy to work on. I quite like the "scoop" on the bottom of the case. It is a bit hard to see in the display photos but there is a scoop on the bottom of the case that redirects airflow through the graphics card from underneath while pulling through the front H18 fans. While not the most silent case the airflow,cooling and sheer size make this case good for just about anything you put in it.
