ASRock DeskMini B760W Intel Raptor Lake-S LGA 1700 DDR4 Barebones Small Form Factor Desktop PC - CPU, RAM, SSD & OS Not Included

More Views

Please note:
Images are for illustrative purposes only.

ASRock DeskMini B760W Intel Raptor Lake-S LGA 1700 DDR4 Barebones Small Form Factor Desktop PC - CPU, RAM, SSD & OS Not Included

Product ID: 45866

✅ Please note: There are optional configurations available below. Simply click on an option to include it with your purchase.

CPU Configuration (Choose One):
Intel Core i3-14100 4-Core 4.70GHz Raptor Lake CPU

R 3,099.00
- View
Intel Core i5-14400 10-Core 4.70GHz Raptor Lake CPU

R 5,599.00
- View
Intel Core i5-14500 14-Core 5.0GHz Raptor Lake CPU (Out of Stock)

R 5,071.00
- View
Intel Core i7-14700 20-Core 5.40GHz Raptor Lake CPU

R 7,236.00
- View

Storage Configuration (Choose One):
1TB Super High-Speed PCIe Gen4 NVMe SSD

R 3,899.00
- View
2TB Super High-Speed PCIe Gen4 NVMe SSD

R 7,899.00
- View

Operating System (Optional):
Microsoft Windows 11 Home 64-bit

R 2,299.00
- View
Microsoft Windows 11 Pro 64-bit

R 2,999.00
- View
I have my own Windows Key (Pre-Install Windows 11 Home for me)

R 100.00
- View
I have my own Windows Key (Pre-Install Windows 11 Pro for me)

R 100.00
- View

In stock with Supplier

Lead time before dispatch; 1 - 2 business days

Be the first to review this product

- Supports 65W Intel Core 14th, 13th, 12th Gen Processors
- Supports DDR4-3200 SO-DIMM Memory, Up to 64GB
- Intel B760 Chipset
- LGA 1700 Socket
- 1x M.2 2280 PCIe 5.0 x4 NVMe SSD Slot
- 1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot
- 2x 2.5" SATA 3.0 6Gbps 9.5mm Drive Bays
- 1x USB 20Gbps Type-C Port (Front)
- 1x USB 10Gbps Type-A Port (Front)
- 2x 3.5mm Audio Jacks (Headphone/Line Out, Microphone) (Front)
- 1x USB 10Gbps Type-C Port with DisplayPort Alt Mode (Rear)
- 2x USB 5Gbps Type-A Ports (Rear)
- 2x USB 2.0 Type-A Ports (Rear)
- 1x DisplayPort 1.4 Port (Rear)
- 1x HDMI 2.1 Port (Rear)
- 1x D-Sub Port (Rear)
- Realtek Dragon RTL8125BG 2.5 Gigabit RJ-45 LAN Port
- Intel Wireless-AC 3168 WiFi 5 Dual Band Adapter, Bluetooth 4.2
- 60A DrMOS Power Stages with Aluminium Heatsink
- 4x Multi-Monitor Support
- Supports Windows 10, Windows 11 64-Bit
- CPU Cooler Clearance: 47mm
- Colour: Black
- Includes South African Power Cable
- 2 Year Warranty

12 Products

- Please note:
  - This product does NOT include a CPU, RAM, storage or operating system. Please configure your mini PC using the components selected above.
  - CPU Cooler maximum supported height is ≤ 47mm.

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R4,124.00

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (0)

Product Description

SPECIFICATIONS
Brand	ASRock
Series	DeskMini Series
Model	B760W (90BXG4E01-A20KA0W)
CPU	Supports 65W Intel Core 14th, 13th, 12th Gen Processors
Cooler	Supports stock Intel CPU Cooler (Max. Height ≦ 47mm)
Chipset	Intel B760 Express
Memory
Intel 14th, 13th, 12th Gen	Supports 2x SO-DIMM DDR4-3200MHz Modules
	Supports Up to 64GB (2x32GB SO-DIMM) DDR4-3200 Memory
	ECC Memory not supported
Graphics
Integrated Graphics	Intel UHD Graphics, Intel Iris Xe Graphics
Integrated Graphics	NOTE: Graphics capabilities may vary with installed CPU
HDMI	HDMI 2.0, Up to UltraHD 4K 3840x2160 @ 60Hz
DisplayPort	DisplayPort 1.4, Up to UltraHD 4K 3840x2160 @ 60Hz
VGA D-Sub	D-Sub, Up to 1920x1200 @ 60Hz
USB Type-C	DisplayPort 1.4 over USB Type-C, Up to UltraHD 4K 3840x21600 @ 60Hz
Storage
CPU Direct	1x Blazing M.2 Socket (M2_1), support type 2280 PCIe Gen5x4 (128 Gb/s) mode
Intel B660 Chipset	1x Hyper M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
	2x SATA3 6Gbps 2.5-inch 7mm/9.5mm Hard Drive (RAID 0/1 capable)
	Supports Intel Optane Technology
	Supports NVMe SSD as boot disks
	Supports Intel Volume Management Device (VMD)
Connectivity

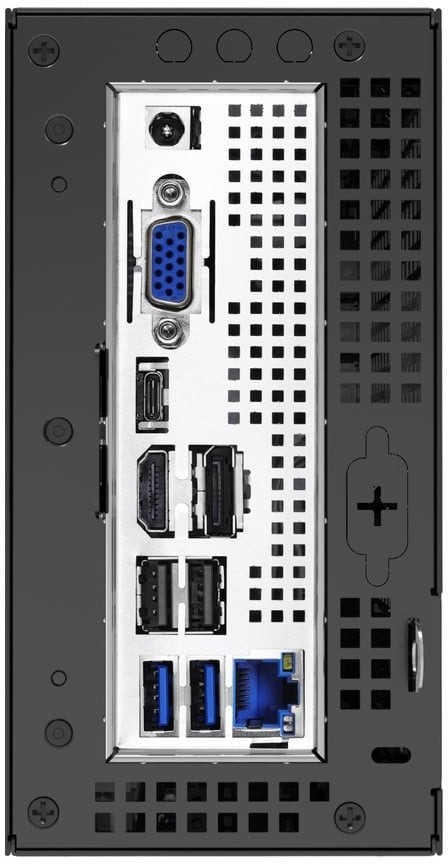

Rear	1x D-Sub Port
	1x HDMI Port
	1x DisplayPort 1.4
	1x USB 10Gbps Type-C Port (Supports USB Type-C Alt Mode)
	2x USB 5Gbps Type-A Ports (Supports ESD Protection)
	2x USB 2.0 Ports (Supports ESD Protection)
	1x 2.5 Gigabit Ethernet RJ-45 LAN Port
Front	1x USB 20Gbps Type-C Port
	1x USB 10Gbps Type-A Port
	2x 3.5mm Audio Jacks (Headphone/Line Out, Microphone)
Networking
LAN	Realtek Dragon RTL8125BG 2.5 Gigabit RJ-45 LAN Port
WLAN	Intel Wireless-AC 3168 Dual Band Adapter (kit included)
Bluetooth	Bluetooth 4.2
General
Internal Connectors	1x USB 2.0 Header
	1x Front Panel Header
	2x 4-Pin fan connectors (CPU, SYS)
	1x Internal Speaker Header (4-Pin)
	1x Audio Header (4-Pin)
Boxed Accessories	2x SATA Data with Power Cable
	1x 120W/19V adapter
	1x Screws Pack
	1x Intel AC-3168 Wi-Fi Kit with moving antenna
Dimension	155 x 155 x 80 mm (1.92l)
Operating System Support	Windows 10 64-Bit
Operating System Support	Windows 11 64-Bit
Colour	Black
VESA Mount Option	Available separately
Warranty Information
Warranty	2 Year Warranty
