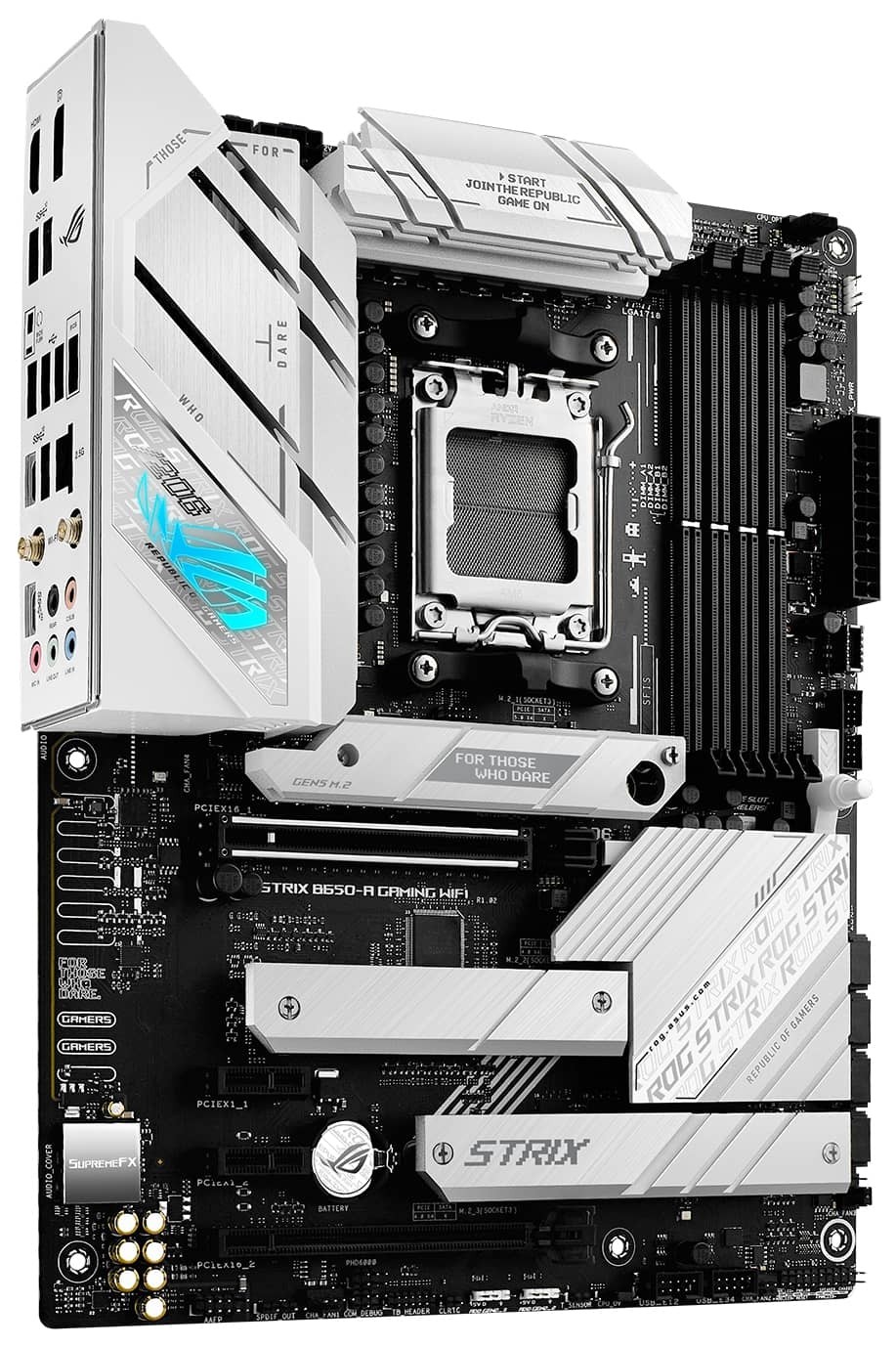

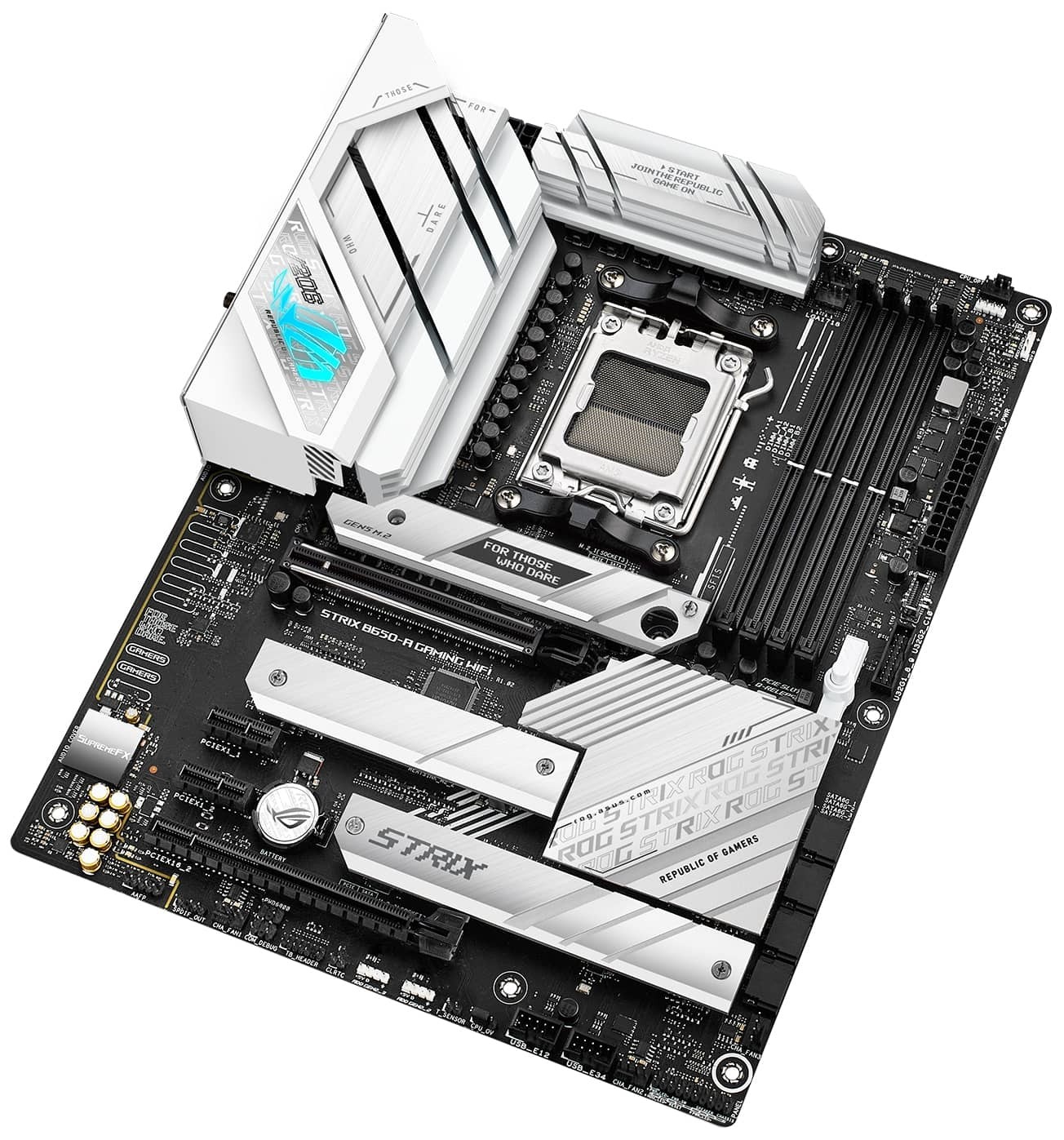

ASUS ROG STRIX B650-A GAMING WIFI AMD B650 Ryzen Socket AM5 ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

ASUS ROG STRIX B650-A GAMING WIFI AMD B650 Ryzen Socket AM5 ATX Desktop Motherboard

Product ID: 41060

In stock with Supplier

Lead time before dispatch; 1 - 2 business days

2 Review(s) | Add Your Review

- ATX Form Factor
- AMD B650 Chipset
- Socket AM5
- 4x DDR5 DIMM Slots, Supports Up To 128GB
- Supports Up to DDR5-6400MHz+ (OC)
- Supports AMD EXPO DDR5 Modules
- 1x PCIe 4.0 x16 Slot
- 1x PCIe 4.0 x16 (Support x4 Speed) Slot
- 2x PCIe 4.0 x1 Slots
- 1x M.2 PCIe NVMe Gen5 Slot
- 2x M.2 PCIe NVMe Gen4 Slots
- 4x SATA 3.0 6.0Gbps Ports
- 1x USB 3.2 Gen 2x2 Type-C
- 3x USB 3.2 Gen 2 Type-A Ports, 1x USB 3.2 Gen 2 Type-C Port
- 4x USB 2.0 Ports
- 1x HDMI 2.1, 1x DisplayPort 1.4
- Intel 2.5 Gigabit Ethernet
- WiFi 6E (802.11ax) And Bluetooth 5.2
- Realtek ALC4080 7.1 Surround Sound High Definition Audio CODEC
- 12+2 60A VRM Power Stage Design
- ProCool Connectors
- Safeslot And SafeDIMM
- Asus Armoury Crate
- AI Suite 3
- 3 Year Warranty

259 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R5,348.00

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (2)

Product Description

SPECIFICATIONS
Brand	ASUS
Series	ROG STRIX Gaming Motherboards
Model	ROG STRIX B650-A GAMING WIFI
CPU	AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors*
CPU	* Refer to www.asus.com for CPU support list.
Chipset	AMD B650
Memory	4 x DIMM, Max. 128GB, DDR5 6400 (OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*
	Dual Channel Memory Architecture
	Supports AMD EXTended Profiles for Overclocking (EXPO)
	OptiMem II
	* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list
Graphics	1 x DisplayPort*
	1 x HDMI port**
	* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
	**Supports 4K@60Hz as specified in HDMI 2.1
Expansion Slots	AMD Ryzen 7000 Series Desktop Processors
	1 x PCIe 4.0 x16 slot
	AMD B650 Chipset
	1 x PCIe 4.0 x16 slot (supports x4 mode)*
	2 x PCIe 4.0/3.0 x1 slots
	* PCIe 4.0 x16 slot (supports x4 mode) from AMD B650 Chipset shares bandwidth with M.2_3
Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
	AMD Ryzen 7000 Series Desktop Processors
	M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode)
	M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
	AMD B650 Chipset
	M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)**
	4 x SATA 6Gb/s port
	*AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
	** M.2_3 slot shares bandwidth with PCIe 4.0 x16 slot (supports x4 mode) When M.2_3 slot is operating in PCIe mode, M.2_3 will be disabled.
Ethernet	1 x Intel 2.5Gb Ethernet
Ethernet	ASUS LANGuard
Wireless And Ethernet	Wi-Fi 6E
	2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
	Supports 2.4/5GHz frequency band
	Bluetooth v5.2
	* Wi-Fi 6E 6GHz regulatory may vary between countries, and function will be
	ready in Windows 11 or later.
USB	Rear USB (Total 12 ports)
	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
	4 x USB 3.2 Gen 2 ports (3 x Type-A 1 x USB Type-C)
	4 x USB 2.0 ports (4 x Type-A)
	Front USB (Total 7 ports)
	1 x USB 3.2 Gen 2 connector (supports USB Type-C)
	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers supports additional 4 USB 2.0 ports
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
	- Impedance sense for front and rear headphone outputs
	- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
	- Supports up to 32-Bit/384 kHz playback
	Audio Features
	- SupremeFX Shielding Technology
	- Savitech SV3H712 AMP
	- Rear optical S/PDIF out port
	- Premium audio capacitors
	- Audio cover
Back Panel I/O Ports	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
	4 x USB 3.2 Gen 2 ports (3 x Type-A 1 x USB Type-C)
	4 x USB 2.0 ports (4 x Type-A)
	1 x DisplayPort
	1 x HDMI port
	1 x Wi-Fi Module
	1 x Intel I225-V 2.5Gb Ethernet port
	5 x Audio jacks
	1 x BIOS FlashBack button
Internal I/O Connectors	Fan and Cooling related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	4 x 4-pin Chassis Fan headers
	Power related
	1 x 24-pin Main Power connector
	1 x 8-pin 12V Power connector
	1 x 4-pin 12V Power connector
	Storage related
	3 x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
	USB
	1 x USB 3.2 Gen 2 connector (supports USB Type-C)
	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers supports additional 4 USB 2.0 ports
	Miscellaneous
	3 x Addressable Gen 2 headers
	1 x AURA RGB header
	1 x Clear CMOS header
	1 x CPU Over Voltage jumper
	1 x Front Panel Audio header (AAFP)
	1 x S/PDIF Out header
	1 x 20-3 pin System Panel header with Chassis intrude function
	1 x Thermal Sensor header
	1 x Thunderboltheader
	1 x COM_DEBUGheader
Special Features	Extreme Engine Digi
	- 5K Black Metallic Capacitors
	ASUS Q-Design
	- M.2 Q-Latch
	- PCIe Slot Q-Release
	- Q-LED
	- Q-DIMM
	- Q-Slot
	ASUS Thermal Solution
	- M.2 heatsink
	- VRM heatsink design
	ASUS EZ DIY
	- BIOS FlashBack button
	- BIOS FlashBack LED
	- ProCool
	- Pre-mounted I/O shield
	- SafeSlot
	- SafeDIMM
	AURA Sync
	- AURA RGB header
	- Addressable Gen 2 headers
Software Features	ROG Exclusive Software
	- GameFirst VI
	- ROG CPU-Z
	- Sonic Studio III Sonic Studio Virtual Mixer Sonic Suite Companion
	- Sonic Radar III
	- DTS Sound Unbound
	- Anti-virus software
	ASUS Exclusive Software
	Armoury Crate
	- AIDA64 Extreme (60 days free trial)
	- AURA Creator
	- AURA Sync
	- Fan Xpert 4
	- Power Saving
	- Two-Way AI Noise Cancellation
	AI Suite 3
	- TPU
	- DIGI VRM
	- Turbo app
	- PC Cleaner
	MyAsus
	WinRAR
	UEFI BIOS
	ASUS EZ DIY
	- ASUS CrashFree BIOS 3
	- ASUS EZ Flash 3
	- ASUS UEFI BIOS EZ Mode
	FlexKey
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Accessories	Cables
	2 x SATA 6Gb/s cables
	Additional Cooling Kit
	1 x Thermal pad for M.2
	Miscellaneous
	1 x ASUS Wi-Fi moving antennas
	1 x Cable ties pack
	1 x M.2 Q-Latch package
	1 x ROG key chain
	1 x ROG Strix stickers
	1 x ROG Strix thank you card
	2 x M.2 Rubber Packages
	Documentation
	1 x User guide
Operating System	Windows 11 64-bit
Form Factor	ATX Form Factor, 30.5 cm x 24.4 cm
Warranty Information
Warranty	3 Year Warranty
