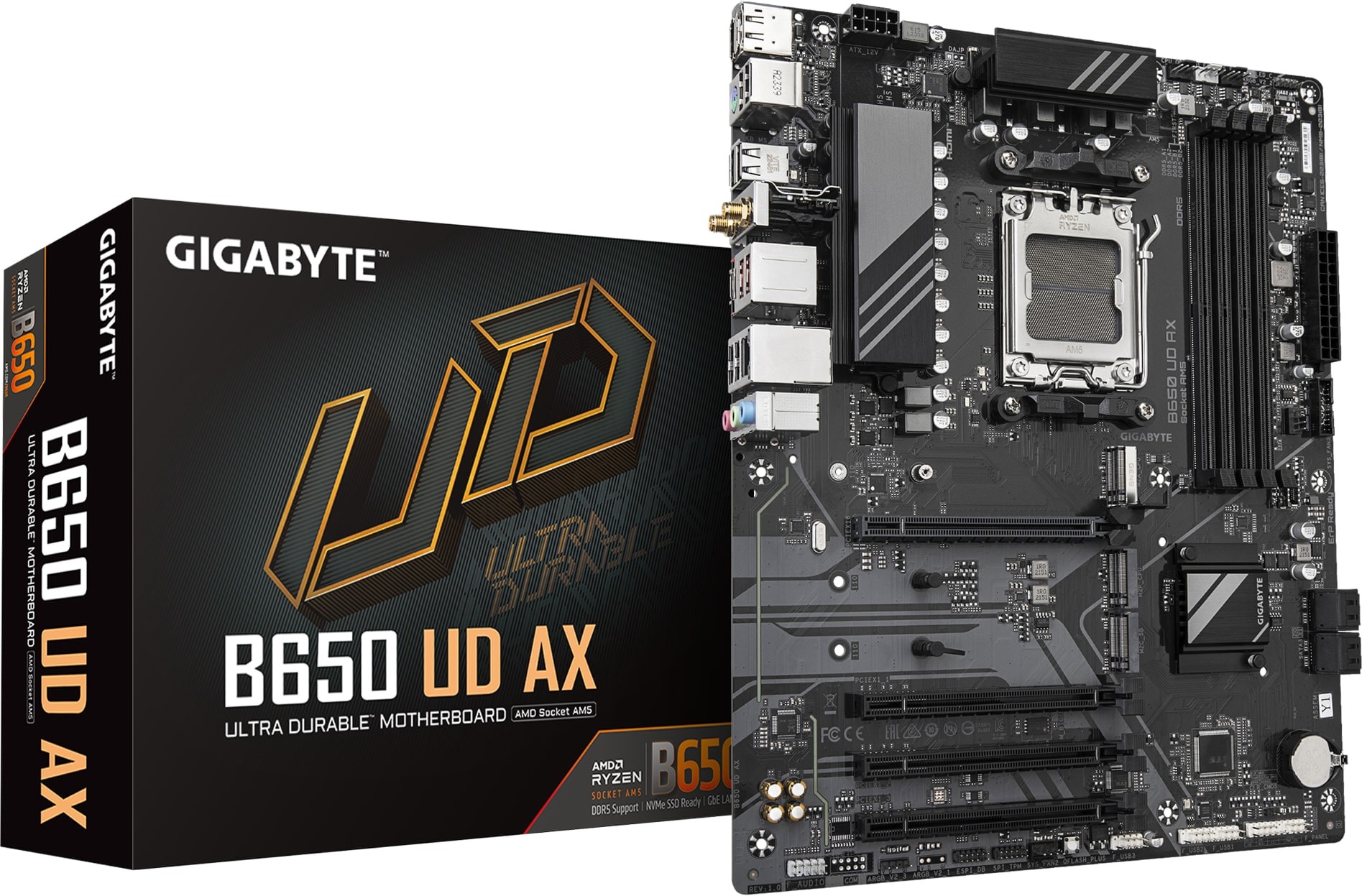

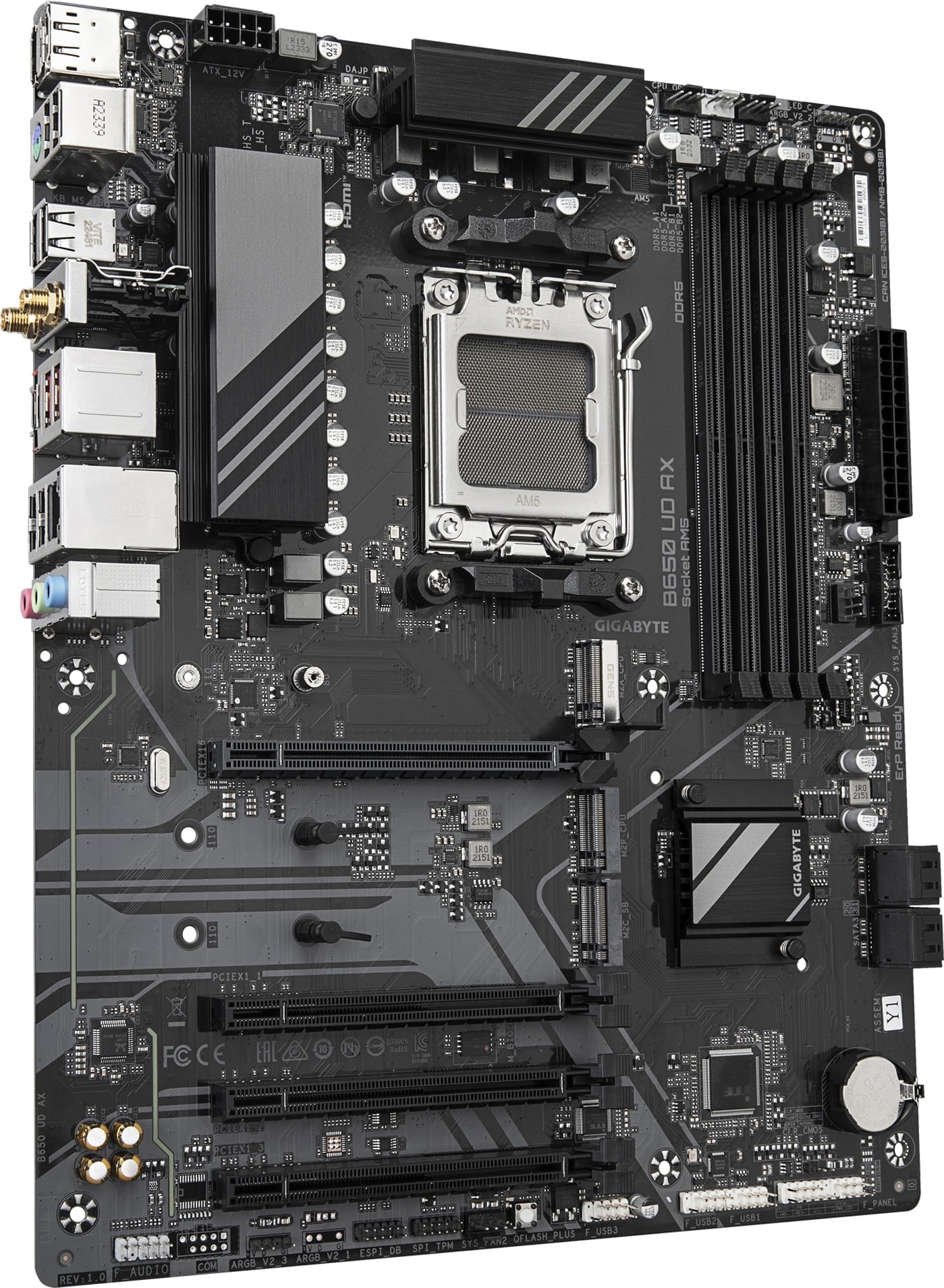

Gigabyte B650 UD AX WiFi AMD B650 Ryzen Socket AM5 ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

Gigabyte B650 UD AX WiFi AMD B650 Ryzen Socket AM5 ATX Desktop Motherboard

Product ID: 48097

✅ Please note: There are optional configurations available below. Simply click on an option to include it with your purchase.

WiFi & Bluetooth Adapter (Optional):
ASUS WiFi 7 Tri-Band PCIe Wireless Adapter

R 599.00
- View

In stock with Wootware

Lead time before dispatch; 1 - 2 business days
Limited stock remaining

Be the first to review this product

- ATX Form Factor
- AMD B650 Chipset
- Socket AM5 Supports Ryzen 7000, 8000 & 9000 Series Processors
- 4x DDR5 DIMM Slots, Supports Up to 256GB
- Supports Up to DDR5-7600 (OC)
- Supports AMD EXPO & Intel XMP 3.0 Modules
- 1x PCIe 4.0 x16 Slot (x16 Physical)
- 3x PCIe 3.0 x1 Slots (x16 Physical)
- 1x M.2 25110 / 2580 PCIe 5.0 x4 NVMe SSD Slot
- 1x M.2 22110 / 2280 PCIe 4.0 x2 NVMe SSD Slot
- 1x M.2 22110 / 2280 PCIe 4.0 x4 NVMe SSD Slot
- 4x SATA 3.0 Ports
- 1x USB 3.2 Gen1 Type-C Port
- 2x USB 3.2 Gen2 Type-A Ports
- 6x USB 2.0 Type-A Ports
- 1x DisplayPort 1.4 Port
- 1x HDMI 2.1 Port
- 3x 3.5mm Audio Jacks (Line In, Line Out, Microphone)
- 2x SMA Connectors
- 1x PS/2 Combo Port (Mouse/Keyboard)
- Realtek RTL8111H Gigabit Ethernet
- Realtek RTL8851 WiFi 6 (802.11ax) Adapter, Bluetooth 5.3
- Realtek ALC897 High-Definition Audio Codec
- PCIe x16 EZ-Latch Quick-Release Mechanism
- Direct 6+2+2 Phase Digital VRM Solution
- Gigabyte Q-Flash Plus
- Gigabyte M.2 EZ-Latch
- Gigabyte Smart Fan 6 Technology
- Gigabyte RGB Fusion
- Gigabyte Ultra Durable Components
- 3 Year Warranty

158 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R4,699.00

R3,149.00

Save: R 1,550!

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (0)

Product Description

SPECIFICATIONS
Brand	Gigabyte
Series	Motherboards
Model	B650 UD AX
CPU	AMD Socket AM5
	Support for AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
	(Refer to "CPU Support List" for more information)
Chipset	AMD B650 Chipset
Memory	Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
	4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules

Onboard Graphics	Integrated Graphics Processor
	1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
	Support for DisplayPort 1.4 version
	1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
	Support for HDMI 2.1 version and HDCP 2.3
	Support for native HDMI 2.1 TMDS compatible ports
Audio	Realtek Audio CODEC
	ALC897
	High Definition Audio
	2/4/5.1/7.1-channel
LAN	Realtek RTL8111H GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module	Realtek RTL8851BE WIFI 6 module
	WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
	Support for 11ax wireless standard
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
	AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
	AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
	AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
	2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1
	1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs
	AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
	AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
	AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
	1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs
	1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support
	4 x SATA 6Gb/s connectors
	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
	RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
	1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
	CPU USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel
	Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header
	1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
	4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
	Chipset USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1x 24-pin ATX main power connector
	1x 8-pin ATX 12V power connector
	1x CPU fan header
	1x CPU fan/water cooling pump header
	2x system fan headers
	1x system fan/water cooling pump header
	1x addressable RGB Gen2 LED strip header
	1x RGB LED strip header
	3x M.2 Socket 3 connectors
	4x SATA 6Gb/s connectors
	1x front panel header
	1x front panel audio header
	1x USB Type-C header, with USB 3.2 Gen 1 support
	1x USB 3.2 Gen 1 header
	3x USB 2.0/1.1 headers
	1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
	1x Q-Flash Plus button
	1x Clear CMOS jumper

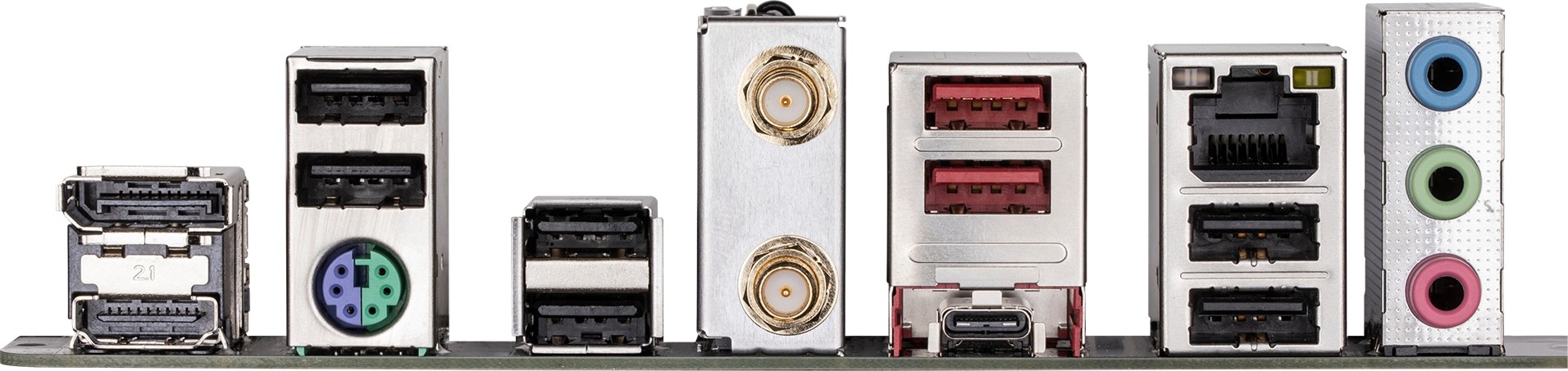

Back Panel Connectors	1 x DisplayPort
	1 x HDMI port
	1 x PS/2 keyboard/mouse port
	2 x SMA antenna connectors
	1 x USB Type-C port
	2 x USB 3.2 Gen 2 Type-A ports (red)
	6 x USB 2.0/1.1 ports
	1 x RJ-45 port
	3 x audio jacks
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection
	Temperature detection
	Fan speed detection
	Water cooling flow rate detection
	Fan fail warning
	Fan speed control
BIOS	1 x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC)
	Support for Q-Flash
	Support for Q-Flash Plus
Bundled Software	Norton Internet Security (OEM version)
Bundled Software	LAN bandwidth management software
Operating System	Support for Windows 11 64-bit
Operating System	Support for Windows 10 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Warranty Information
Warranty	3 Year Warranty
