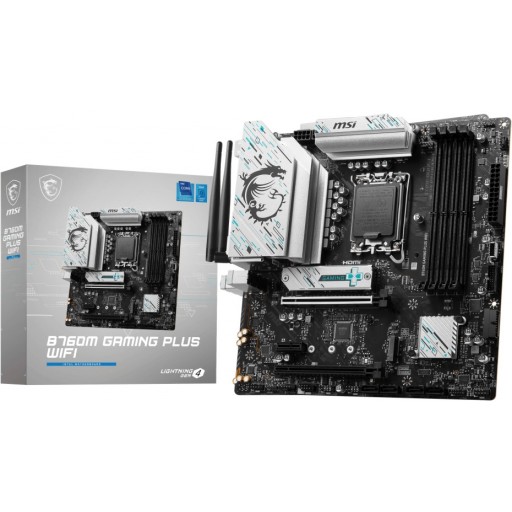

MSI B760M GAMING PLUS WIFI DDR5 Intel B760 LGA 1700 Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

MSI B760M GAMING PLUS WIFI DDR5 Intel B760 LGA 1700 Micro-ATX Desktop Motherboard

Product ID: 46853

In stock with Supplier

Lead time before dispatch; 2 - 5 business days

Be the first to review this product

- Micro-ATX Form Factor
- Intel B760 Chipset
- LGA 1700
- Supports Intel 12th, 13th, 14th Gen Processors
- BIOS Flashback Supports 14th Gen Processors
- Supports USB Type-C Front-Panel Header
- 4x DDR5 DIMM Slots, Supports Up to 256GB (4x64GB)
- Supports up to DDR5-6800 (OC)
- Supports Intel XMP 3.0 Memory
- 1x PCIe 4.0 x16 Slot (x16 Physical)
- 1x PCIe 4.0 x4 Slot (x16 Physical)
- 1x PCIe 3.0 x1 Slot (x1 Physical)
- 2x M.2 2280 PCIe 4.0 x4 NVMe SSD Slots
- 4x SATA 3.0 Ports
- 2x USB 10Gbps Type-A Ports
- 2x USB 5Gbps Type-A Ports
- 2x USB 2.0 Type-A Ports
- 2x HDMI 2.1 Ports
- 2x DisplayPort 1.4 Port
- 2x SMA Connectors
- 3x 3.5mm Audio Jacks
- Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
- WiFi 6E Tri-Band Adapter, Bluetooth 5.3
- Realtek ALC897 High-Definition Surround Audio Codec
- MSI 12+1+1 Phase Duet Rail VRM Solution with P-PAK
- MSI Mystic Light RGB Sync
- MSI EZ Debug LED Diagnostic Array
- MSI Center Utility
- Supports Windows 11 64-bit
- 3 Year Warranty

90 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R3,393.00

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (0)

Product Description

SPECIFICATIONS
Brand	MSI
Series	Gaming Series
Model	B760M GAMING PLUS WIFI
CPU Support	Supports Intel 12th, 13th, 14th Gen Processors
Chipset	Intel B760 Chipset
Memory Support
Intel B760 Chipset	4x DDR5, Maximum Memory Capacity 256GB
	Memory Support DDR5 6800 (OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
	Max. overclocking frequency:
	1DPC 1R Max speed up to 6800 MHz
	1DPC 2R Max speed up to 6400 MHz
	2DPC 1R Max speed up to 6000 MHz
	2DPC 2R Max speed up to 5600 MHz
	Supports Intel XMP 3.0 OC
	Supports Dual-Controller Dual-Channel mode
	Supports non-ECC, un-buffered memory
Video
DisplayPort	2x DisplayPort 1.4 Ports, supporting a maximum resolution of 3840x2160 @ 60Hz, supports HDCP, HDR
HDMI	2x HDMI 2.1 Ports, supporting a maximum resolution of 3840x2160 @ 60Hz, supports HDCP, HDR
HDMI	Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 4.0 x16 Electrical, x16 Physical Slot (PCI_E1)
Intel B760 Chipset	1x PCIe 4.0 x4 Electrical, x16 Physical Slot (PCI_E2 )
Intel B760 Chipset	1x PCIe 1.0 x1 Electrical, x1 Physical Slot (PCI_E3 )
Storage
CPU Direct	M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
Intel B760 Chipset	M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
	4x SATA 6Gbps connectors
	NOTE: SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot
Networking
LAN	Realtek 2.5 Gigabit LAN 10/100/1000/2500Mbps
WiFi	WiFi 6E 2x2 MIMO Tri-Band Adapter
Bluetooth	Bluetooth 5.3
Audio
Codec	Realtek High-Definition Audio Codec
Codec	Support for 7.1 Surround with front-panel jack retasking
Connectivity
Ports	2x USB 10Gbps Type-A Ports
	2x USB 5Gbps Type-A Ports
	2x USB 2.0 Type-A Ports
	2x HDMI 2.1 Ports
	2x DisplayPort 1.4 Port
	2x SMA Connectors
	3x 3.5mm Audio Jacks
	1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
Buttons	N/A
General
Internal Connectors	1x Power Connector(ATX_PWR)
	2x Power Connector(CPU_PWR)
	1x CPU Fan
	1x Pump Fan
	2x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Com Port (JCOM)
	2x Addressable V2 RGB LED connector (JARGB_V2)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0 ports
	4x USB 5Gbps Type A ports
	1x USB 5Gbps Type C ports
LEDs	4x EZ Debug LEDs
I/O Controller	NUVOTON NCT6687D Controller Chip
BIOS	1x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, ACPI 6.4, SMBIOS 3.4
Form Factor	Micro-ATX Form Factor, 243.84 x 243.84 mm (H x W)
Operating System Support	Windows 10 64-bit
Operating System Support	Windows 11 64-bit (recommended)
Boxed Accessories	1x Quick installation guide
	1x European Union regulatory notices
	1x SATA 6Gb/s cable
	1x Wi-Fi antenna set
	1x I/O Shielding
	1x M.2 screw and standoff package (2 sets/pack)
Warranty Information
Warranty	3 Year Warranty
