MSI PRO B760M-P DDR5 Intel B760 LGA 1700 Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

MSI PRO B760M-P DDR5 Intel B760 LGA 1700 Micro-ATX Desktop Motherboard

Product ID: 47847

Be the first to review this product

- Micro-ATX Form Factor
- Intel B760 Chipset
- LGA 1700
- Supports Intel 12th, 13th, 14th Gen Processors
- 4x DDR5 DIMM Slots, Supports Up to 256GB (4x64GB)
- Supports up to DDR5-6800 (OC)
- Supports Intel XMP 3.0 Memory Profiles
- 1x PCIe 4.0 x16 Slot (x16 Physical)
- 2x PCIe 4.0 x1 Slots (x1 Physical)
- 2x M.2 2280 PCIe 4.0 x4 NVMe SSD Slots
- 4x SATA 3.0 Ports
- 1x USB 10Gbps Type-C Port
- 1x USB 5Gbps Type-A Port
- 4x USB 2.0 Type-A Ports
- 1x HDMI 2.1 Port
- 1x DisplayPort 1.4 Port
- 1x VGA D-Sub Port
- 2x PS/2 Ports (Keyboard, Mouse)
- 3x 3.5mm Audio Jacks
- Realtek Gigabit Ethernet RJ-45 LAN Port
- Realtek ALC897 High-Definition Surround Audio Codec
- MSI EZ M.2 Clip Solution
- MSI Mystic Light RGB Sync
- MSI EZ Debug LED Diagnostic Array
- MSI Center Utility
- Supports Windows 11 64-bit
- 3 Year Warranty

134 Products

Out of Stock

Add to Wishlist

Customers Who Viewed This Product Purchased

ASUS TUF GAMING B760M-PLUS WIFI II DDR5 Intel B760 LGA 1700 Rapto...

In stock with Wootware

R4,999.00

R2,599.00

Save: R 2,400!

2 Review(s)

Gigabyte B760M GAMING X DDR4 GEN5 Intel B760 Raptor Lake LGA 1700...

In stock with Supplier

R2,766.00

4 Review(s)

MAXSUN Challenger B760M D5 WIFI Intel B760 Raptor Lake LGA 1700 D...

In stock with Wootware

R2,999.00

R1,499.00

Save: R 1,500!

2 Review(s)

Gigabyte GA-B760M-DS3H-DDR4 B760M DS3H DDR4 Intel B760 Raptor Lak...

In stock with Supplier

R2,191.00

2 Review(s)

Product Description
Additional Information
Reviews (0)
Questions (0)

Product Description

SPECIFICATIONS
Brand	MSI
Series	PRO Series
Model	PRO B760M-P DDR5
CPU Support	Supports Intel 12th, 13th, 14th Gen Processors
Chipset	Intel B760 Chipset
Memory Support
Intel B760 Chipset	4x DDR5, Maximum Memory Capacity 256GB
	Memory Support DDR5 6800 (OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
	Max. overclocking frequency:
	1DPC 1R Max speed up to 6800 MHz
	1DPC 2R Max speed up to 6400 MHz
	2DPC 1R Max speed up to 6000 MHz
	2DPC 2R Max speed up to 5600 MHz
	Supports Intel XMP 3.0 OC
	Supports Dual-Controller Dual-Channel mode
	Supports non-ECC, un-buffered memory
Video
DisplayPort	1x DisplayPort 1.4 Port, supporting a maximum resolution of 3840x2160 @ 60Hz, supports HDCP, HDR
HDMI	1x HDMI 1.4 Port, supporting a maximum resolution of 3840x2160 @ 30Hz, supports HDCP
VGA	1x VGA D-Sub Port, supporting a maximum resolution of 2048x1280 60Hz or 1920x1200 60Hz
VGA	Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 4.0 x16 Electrical, x16 Physical Slot (PCI_E1)
Intel B760 Chipset	2x PCIe 4.0 x1 Electrical, x1 Physical Slots
Storage
CPU Direct	M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
Intel B760 Chipset	M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
	4x SATA 6Gbps connectors
	NOTE: SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot
Networking
LAN	Realtek Gigabit LAN RJ-45 Port
WiFi	N/A
Bluetooth	N/A
Audio
Codec	Realtek High-Definition Audio Codec
Codec	Support for 7.1 Surround with front-panel jack retasking, jack detection

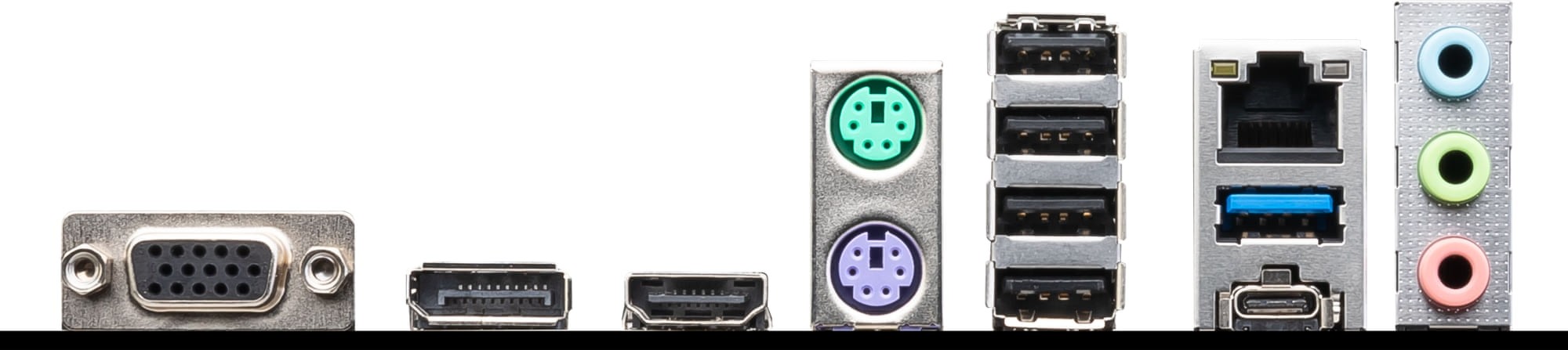

Connectivity
Ports	1x USB 10Gbps Type-C Port
	1x USB 5Gbps Type-A Port
	4x USB 2.0 Type-A Ports
	1x HDMI 1.4 Port
	1x DisplayPort 1.4 Port
	1x VGA D-Sub Port
	2x PS/2 Ports (Keyboard, Mouse)
	3x 3.5mm Audio Jacks
	1x Realtek Gigabit Ethernet RJ-45 LAN Port
Buttons	N/A
General
Internal Connectors	1x Power Connector(ATX_PWR)
	1x Power Connector(CPU_PWR)
	1x CPU Fan
	2x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Printer Port (JLPT)
	1x Com Port (JCOM)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0 ports (header)
	2x USB 5Gbps Type A ports (header)
LEDs	4x EZ Debug LEDs (CPU, VGA, DRAM, BOOT)
I/O Controller	NUVOTON NCT6687D Controller Chip
BIOS	1x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, ACPI 6.4, SMBIOS 3.4
Form Factor	Micro-ATX Form Factor, 243.84 x 243.84 mm (H x W)
Operating System Support	Windows 10 64-bit
Operating System Support	Windows 11 64-bit (recommended)
Boxed Accessories	1x Quick installation guide
	1x European Union regulatory notices
	1x SATA 6Gb/s cable
	1x I/O Shielding
	1x M.2 screw and standoff package (2 sets/pack)
Warranty Information
Warranty	3 Year Warranty
