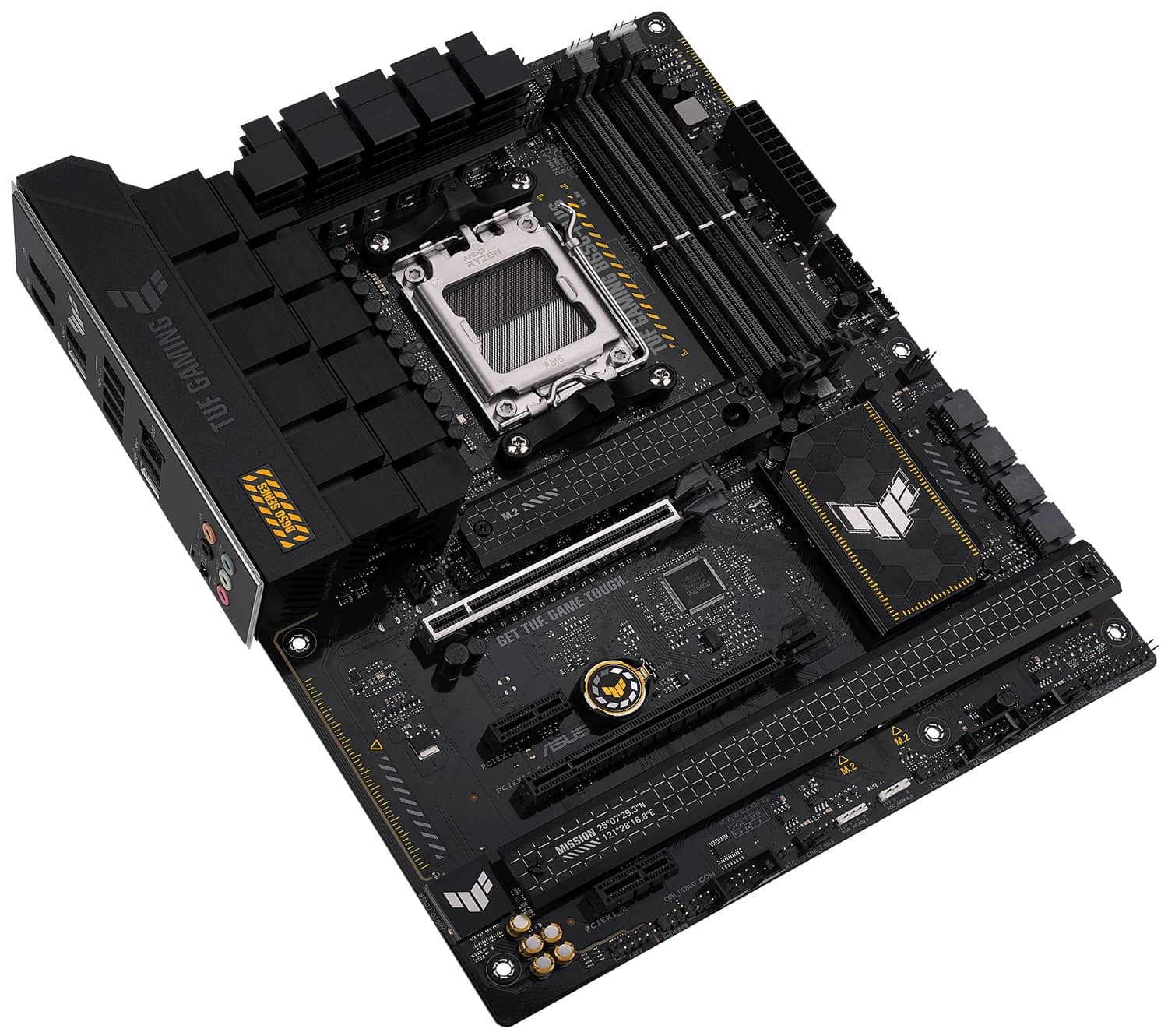

ASUS TUF GAMING B650-PLUS AMD B650 Ryzen Socket AM5 ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

ASUS TUF GAMING B650-PLUS AMD B650 Ryzen Socket AM5 ATX Desktop Motherboard

Product ID: 41052

1 Review(s) | Add Your Review

- ATX Form Factor
- AMD B650 Chipset
- Socket AM5
- 4x DDR5 DIMM Slots, Supports Up To 128GB
- Supports Up to DDR5-6400MHz+ (OC)
- Supports AMD EXPO DDR5 Modules
- 1x PCIe 4.0 x16 Slot
- 1x PCIe 4.0 x16 (Support x4 Speed) Slot
- 2x PCIe 4.0 x1 Slots
- 1x M.2 PCIe NVMe Gen5 Slot
- 2x M.2 PCIe NVMe Gen4 Slots
- 4x SATA 3.0 6.0Gbps Ports
- 1x USB 3.2 Gen 2x2 Type-C
- 2x USB 3.2 Gen 2 Type-A Ports, 1x USB 3.2 Gen 2 Type-C Port
- 4x USB 2.0 Ports
- 1x HDMI 2.1, 1x DisplayPort 1.4
- Realtek 2.5 Gigabit Ethernet
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- 12+2 Teamed 60A VRM Power Stage Design With Enlarged Heatsinks
- ProCool Connectors
- Safeslot Core+ And SafeDIMM
- Asus Armoury Crate
- AI Suite 3
- 3 Year Warranty

193 Products

End of Life

Add to Wishlist

Customers Who Viewed This Product Purchased

Gigabyte B650-EAGLE-AX B650 EAGLE AX WIFI 6E AMD B650 Ryzen Socke...

In stock with Wootware

R4,649.00

R3,499.00

Save: R 1,150!

9 Review(s)

MSI B650M GAMING PLUS WIFI 6E AMD B650 Ryzen Socket AM5 Micro-ATX...

In stock with Wootware

R2,999.00

R2,749.00

Save: R 250!

Sapphire 52112-04-40G B650M-E AMD B650 Ryzen Socket AM5 Micro-ATX...

In stock with Wootware

R3,299.00

R2,199.00

Save: R 1,100!

1 Review(s)

Gigabyte GA-B650M-D3HP B650M D3HP AMD B650 Ryzen Socket AM5 Micro...

In stock with Wootware

R3,099.00

R2,499.00

Save: R 600!

1 Review(s)

Gigabyte B650M GAMING WIFI6E AMD B650 Ryzen Socket AM5 Micro-ATX ...

In stock with Wootware

R3,349.00

R2,499.00

Save: R 850!

MAXSUN Challenger B650M WIFI V2 AMD B650 Ryzen Socket AM5 Micro-A...

In stock with Wootware

R2,999.00

R1,899.00

Save: R 1,100!

MSI PRO B650-S WIFI 6E AMD B650 Ryzen Socket AM5 ATX Desktop Moth...

In stock with Supplier

R3,472.00

3 Review(s)

1 Review(s)

Product Description
Additional Information
Reviews (1)
Questions (0)

Product Description

SPECIFICATIONS
Brand	Asus
Series	TUF Gaming Motherboards
Model	TUF GAMING B650-PLUS
CPU	AMD Socket AM5 for AMD Ryzen 7000 Series
	Desktop Processors*
	* Refer to www.asus.com for CPU support list.
Chipset	AMD B650
Memory	4 x DIMM, Max. 128GB, DDR5
	6400 (OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
	Dual Channel Memory Architecture
	Supports AMD EXTended Profiles for Overclocking (EXPO)
	OptiMem II
	* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Graphics	1 x DisplayPort*
	1 x HDMI port**
	* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
	** Supports 4K@60Hz as specified in HDMI 2.1.
	*** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots	AMD Ryzen 7000 Series Desktop Processors*
	1 x PCIe 4.0/3.0 x16 slot(s)
	AMD B650 Chipset
	1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
	2 x PCIe 4.0/3.0 x1 slots
	* Please check PCIe bifurcation table on support site (https://www.asus.com/support/FAQ/1037507/).
Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
	AMD Ryzen 7000 Series Desktop Processors
	M.2_1 slot (Key M), type
	2242/2260/2280(supports PCIe 5.0 x4 mode)
	M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
	AMD B650 Chipset
	M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**
	4 x SATA 6Gb/s ports
	* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
	** M.2_3 shares bandwidth with PCIEX16_2. PCIEX16_2 will be suspended once M.2_3 is populated.
Ethernet	1 x Realtek 2.5Gb Ethernet
Ethernet	TUF LANGuard
USB	Rear USB (Total 8 ports)
	1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
	3 x USB 3.2 Gen 2 port(s) (2 x Type-A 1 x USB Type-C)
	4 x USB 2.0 port(s) (4 x Type-A)
	Front USB (Total 7 ports)
	1 x USB 3.2Gen 1 connector (supports USB Type-C)
	1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC*
	- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	- Supports up to 24-Bit/192 kHz playback
	Audio Features
	- Audio Shielding
	- Power pre-regulator reduces power input noise to ensure consistent performance
	- Premium audio capacitors
	- Dedicated audio PCB layers
	- Audio cover
	- Unique de-pop circuit
	* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
	** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports	1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
	3 x USB 3.2 Gen 2 port(s) (2 x Type-A 1 x USB Type-C)
	4 x USB 2.0 port(s) (4 x Type-A)
	1 x DisplayPort
	1 x HDMI port
	1 x Realtek 2.5Gb Ethernet port
	5 x Audio jacks
	1 x BIOS FlashBack button
Internal I/O Connectors	Fan and Cooling related
	1 x 4-pin CPU Fan header(s)
	1 x 4-pin CPU OPT Fan header(s)
	1 x 4-pin AIO Pump header(s)
	4 x 4-pin Chassis Fan header(s)
	Power related
	1 x 24-pin Main Power connector
	1 x 8-pin 12V Power connector
	1 x 4-pin 12V Power connector
	Storage related
	3 x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
	USB
	1 x USB 3.2 Gen 1 connector (support(s) USB Type-C )
	1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports
	2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
	Miscellaneous
	3 x Addressable Gen 2 header(s)
	1 x Aura RGB header(s)
	1 x Clear CMOS header
	1 x COM Port header
	1 x Front Panel Audio header (AAFP)
	20-3 pin System Panel header with Chassis intrude function
	1 x Thunderbolt (USB4) header
Special Features	ASUS TUF PROTECTION
	- DIGI VRM (- Digital power design with DrMOS)
	- Enhanced DRAM Overcurrent Protection
	- ESD Guards
	- TUF LANGuard
	- Overvoltage Protection
	- SafeSlot Core
	- Stainless-Steel Back I/O
	ASUS Q-Design
	- M.2 Q-Latch
	- Q-DIMM
	- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
	- Q-Slot
	ASUS Thermal Solution
	- M.2 heatsink
	- VRM heatsink design
	ASUS EZ DIY
	- BIOS FlashBack button
	- BIOS FlashBack LED
	- ProCool
	- Pre-mounted I/O shield
	- SafeDIMM
	Aura Sync
	- Aura RGB header(s)
	- Addressable Gen 2 header(s)
Software Features	ASUS Exclusive Software
	Armoury Crate
	- Aura Creator
	- Aura Sync
	- Fan Xpert 4
	- Power Saving
	- Two-Way AI Noise Cancellation
	AI Suite 3
	- TurboV EVO
	- DIGI VRM
	- PC Cleaner
	TUF GAMING CPU-Z
	DTS Audio Processing
	Norton Anti-virus software (Free Trial version)
	WinRAR
	UEFI BIOS
	ASUS EZ DIY
	- ASUS CrashFree BIOS 3
	- ASUS EZ Flash 3
	- ASUS UEFI BIOS EZ Mode
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Operating System	Windows 11
Operating System	Windows 10 64-bit
Form Factor	ATX Form Factor (30.5 cm x 24.4 cm)
Warranty Information
Warranty	3 Year Warranty
