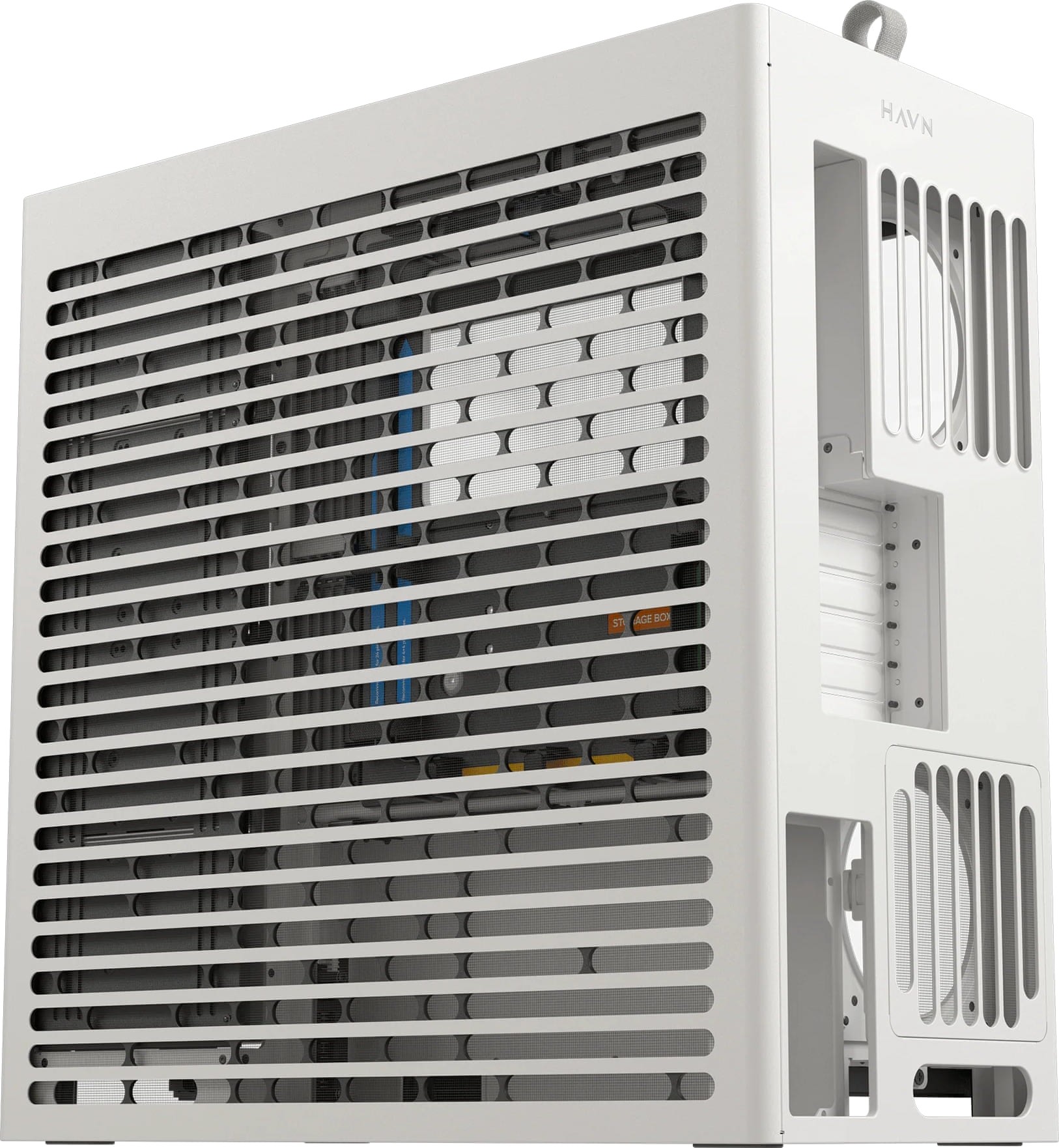

HAVN HVN-CA-HS420-07 HS 420 VGPU Panoramic UniSheet White Glass SGCC Steel E-ATX Mid Tower Desktop Chassis

More Views

Please note:
Images are for illustrative purposes only.

HAVN HVN-CA-HS420-07 HS 420 VGPU Panoramic UniSheet White Glass SGCC Steel E-ATX Mid Tower Desktop Chassis

Product ID: 53554

Be the first to review this product

- Mid-Tower Chassis
- Supports E-ATX, ATX, Micro-ATX, Mini-ITX Motherboards
- UniSheet Heat-formed Panoramic Front & Side Glass Panel
- Front, Top, Right & Rear-Mount Dust Filters
- Integrated Fan PWM Repeater Hub
- 2x USB 3.2 Gen 1 Type-A Ports, 1x USB 3.2 Gen 2 Type-C Port
- 1x Front-Panel 3.5mm Audio Jack
- 4x 3.5"/2.5" Combo HDD Drive Bays Supported
- 8x 2.5" HDD/SSD Drive Bays Supported
- Intuitive SimpliCable Routing System
- Supports Up to 10x 120mm Fans
- Radiator Support Up to 420mm
- CPU Cooler Clearance: 185mm
- GPU Cooler Clearance: 470mm
- PSU Length Clearance: 220mm
- Adjustable VGPU Bracket
- Lightning-fast PCIe 5.0 x16 Riser Cable Included
- Flexible Rubber Fan Vibration Isolators
- Internal Max 14" Display VESA Mounting
- Colour: White
- 2 Year Warranty

13 Products

Out of Stock

Add to Wishlist

Customers Who Viewed This Product Purchased

Montech AIR 903 MAX Black RGB Tempered Glass ATX Mid Tower Deskto...

In stock with Wootware

R1,699.00

R1,349.00

Save: R 350!

22 Review(s)

Lian Li G99.LAN217X.00 LANCOOL 217 Clear Tempered Glass Black Ste...

In stock with Wootware

R2,549.00

R2,199.00

Save: R 350!

3 Review(s)

Lian Li G99.LAN217INFX.00 LANCOOL 217 INF ARGB Tempered Glass Bla...

In stock with Wootware

R2,649.00

R2,199.00

Save: R 450!

1 Review(s)

NZXT CM-H72FB-R1 H7 Flow RGB Tempered Glass Black E-ATX Mid-Tower...

In stock with Wootware

R3,199.00

R1,499.00

Save: R 1,700!

Antec C8 Constellation Black Clear Tempered Glass E-ATX Full Towe...

In stock with Wootware

R2,099.00

R1,749.00

Save: R 350!

6 Review(s)

NZXT CM-H72FW-R1 H7 Flow RGB Tempered Glass White E-ATX Mid-Tower...

In stock with Wootware

R3,199.00

R1,399.00

Save: R 1,800!

Antec FLUX Clear Tempered Glass Steel Mesh Black E-ATX Mid-Tower ...

In stock with Supplier

R1,758.00

3 Review(s)

Lian Li G99.O11DEXL-X.00 PC-O11 Dynamic EVO XL Tempered Glass Bla...

In stock with Wootware

R5,699.00

R4,499.00

Save: R 1,200!

1 Review(s)

Antec FLUX PRO Clear Tempered Glass Steel Mesh Black E-ATX Full-T...

In stock with Supplier

R3,284.00

5 Review(s)

HAVN HVN-CA-BF360-04 BF 360 Flow Tempered Glass Black SGCC Steel ...

In stock with Supplier

R2,745.00

1 Review(s)

Product Description
Additional Information
Reviews (0)
Questions (0)

Product Description

SPECIFICATIONS
Brand	HAVN
Series	HS 420 Series
Model	HS 420 VGPU (HVN-CA-HS420-07)
Physical Details
Colour	White
Materials	SGCC Steel Sheet Metal
Materials	ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets
Side Panel	Tempered Glass
I/O Ports	1x USB 3.2 Gen 2 Type-C
	2x USB 3.2 Gen 1 Type-A
	1x Audio Jack
	1x Power & Reset Button
Motherboard Support	E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX
Expansion Slots	6 Horizontal, 4 Vertical
Drive Bays	Right Fan Mount: 4 Storage Bays: 4 x 3.5'' / 8 x 2.5''
	Cable Management Tray: 1 Storage Bay: 1 x 3.5'' / 2 x 2.5''
	Storage Bay Included: 4x
PSU Support	ATX
Dimensions	541mm x 259.5mm x 547mm
Volume	19kg
Fan PWM Repeater
Fan Ports	2 x PWM repeaters, 12 ports total
Location	1 x Cable Management Tray
Location	1 x PSU Shroud
Fan Connectors	6 ports per repeater x 4-pin PWM
Fan Connectors	(Connect your primary fan to the white port to control PWM signal. All other ports mirror the white port's signal.)
Fan Rated Voltage	12V
Fan Safety Current	Up to 2.6A across 6 ports
Power Connector	1 x SATA Power
Power Safety Current	1 x SATA connector power input, 12V → 2.6A (max)
Pre-Installed Fans
Top	N/A
Right	N/A
Bottom	N/A
Rear	N/A
Fan Support
Top	3x 120mm / 3x 140mm
Right	3x 120mm / 3x 140mm
Bottom	3x 140mm
Rear	2x 120mm / 2x 140mm
Rear	Thickness Up to 30mm
Radiator Support
Top	280mm / 360mm / 420mm (Thickness: 65 mm, not overlapping with RAM)
Right	280mm / 360mm / 420mm (Thickness: 60 mm w/ GPU >317mm, 80 mm w/ top AIO)
Clearance
CPU Cooler Height Limitation	Up to 185 mm
CPU Cooler Height Limitation	Tower cooler size depends on GPU width. CPU center to graphics card PCIe edge connector; ~199mm (varies by motherboard). Liquid cooling recommended.
PSU Length Limitation	Up to 220mm (Clearance - 290mm)
GPU Clearence	Length: Up to 470 mm
	Width: Up to 195 mm
	GPU width support depends on CPU cooler size. CPU center to graphics card PCIe edge connector: ~199mm (varies by motherboard). Liquid cooling recommended.
RAM Clearance	If the fan and radiator thickness is greater than 65 mm: 420 mm - 32 mm / 360 mm - 43 mm
General
Dust Filters	Bottom, Top, Right & Rear Bottom
Vertical GPU Support	4 Slots
Vertical GPU Support	PCI Express 5.0 Riser Cable Included
Internal Display Support
VESA Mounting	75mm x 75mm
VESA Mounting	100mm x 100mm
Display Size	14" (Max)
Location	Front Right Pillar
Warranty Information
Warranty	2 Year Warranty
