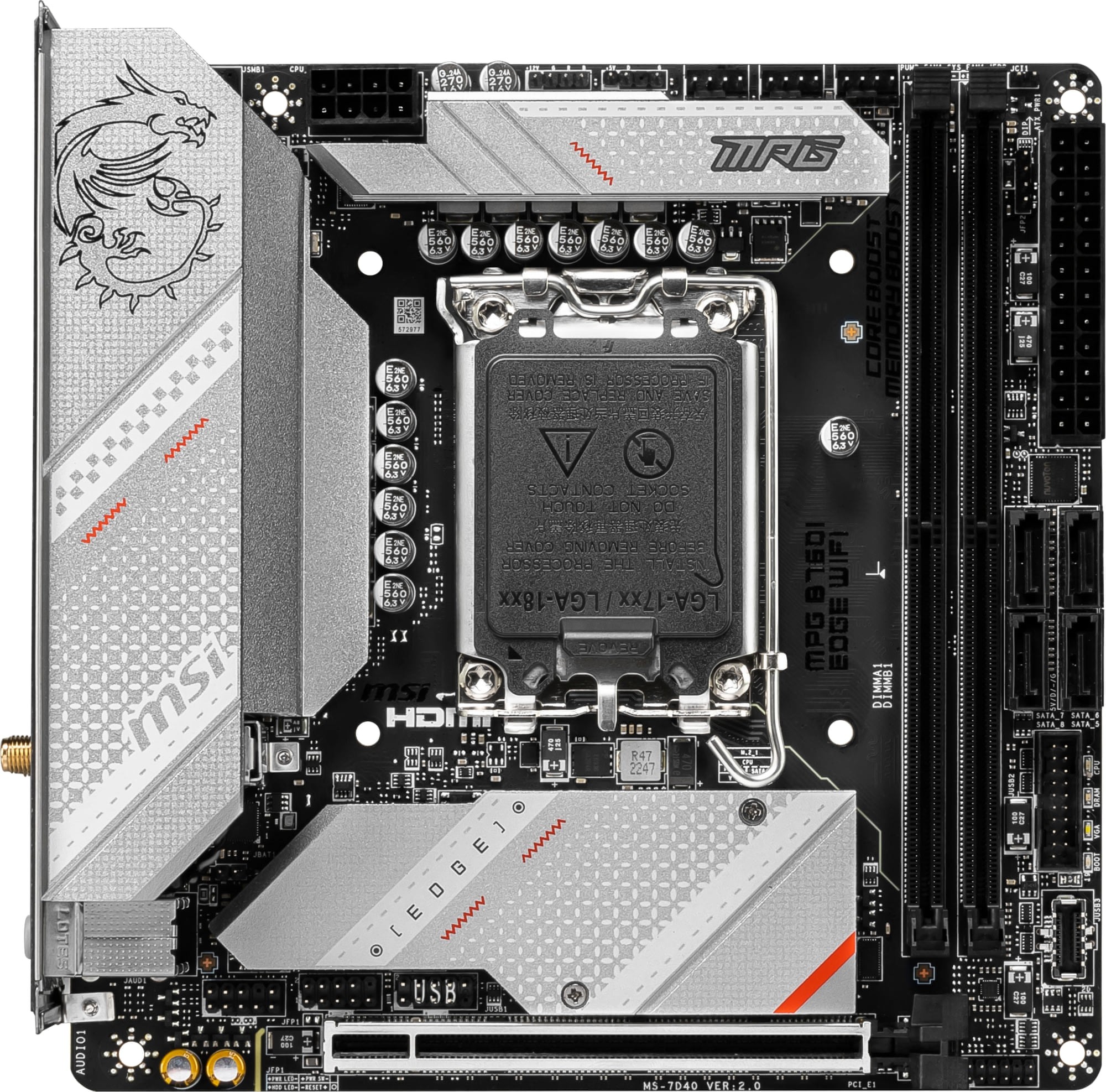

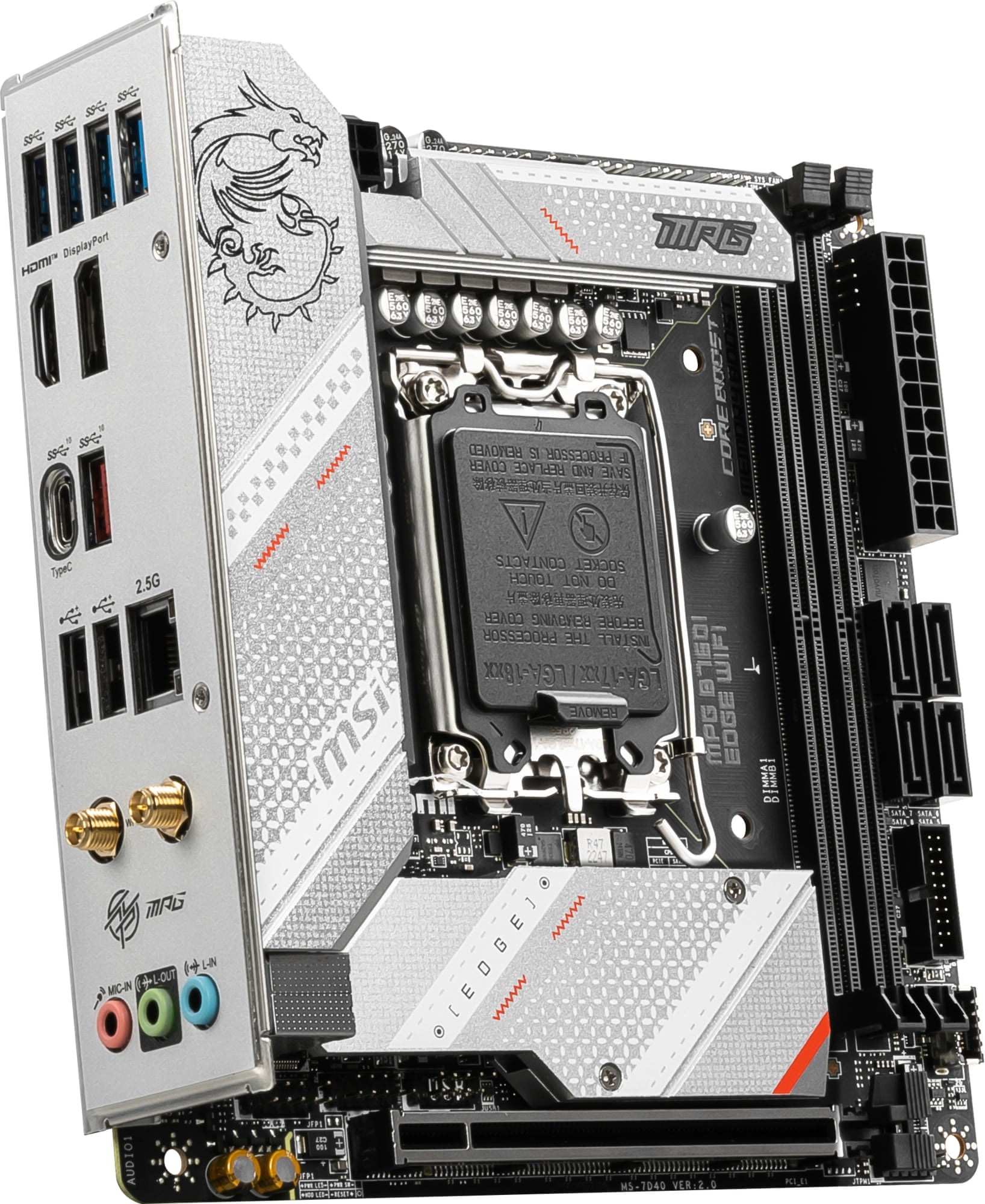

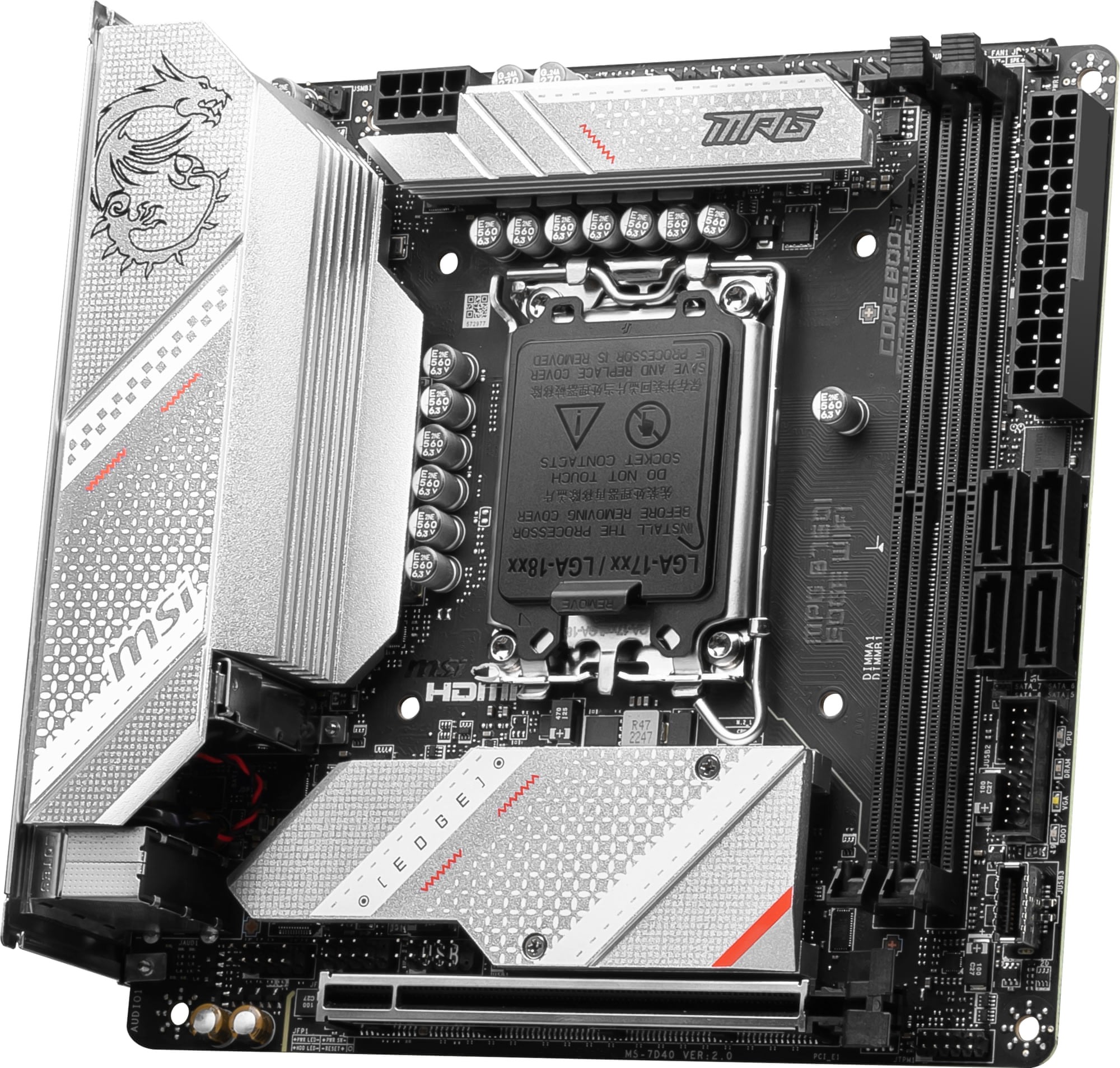

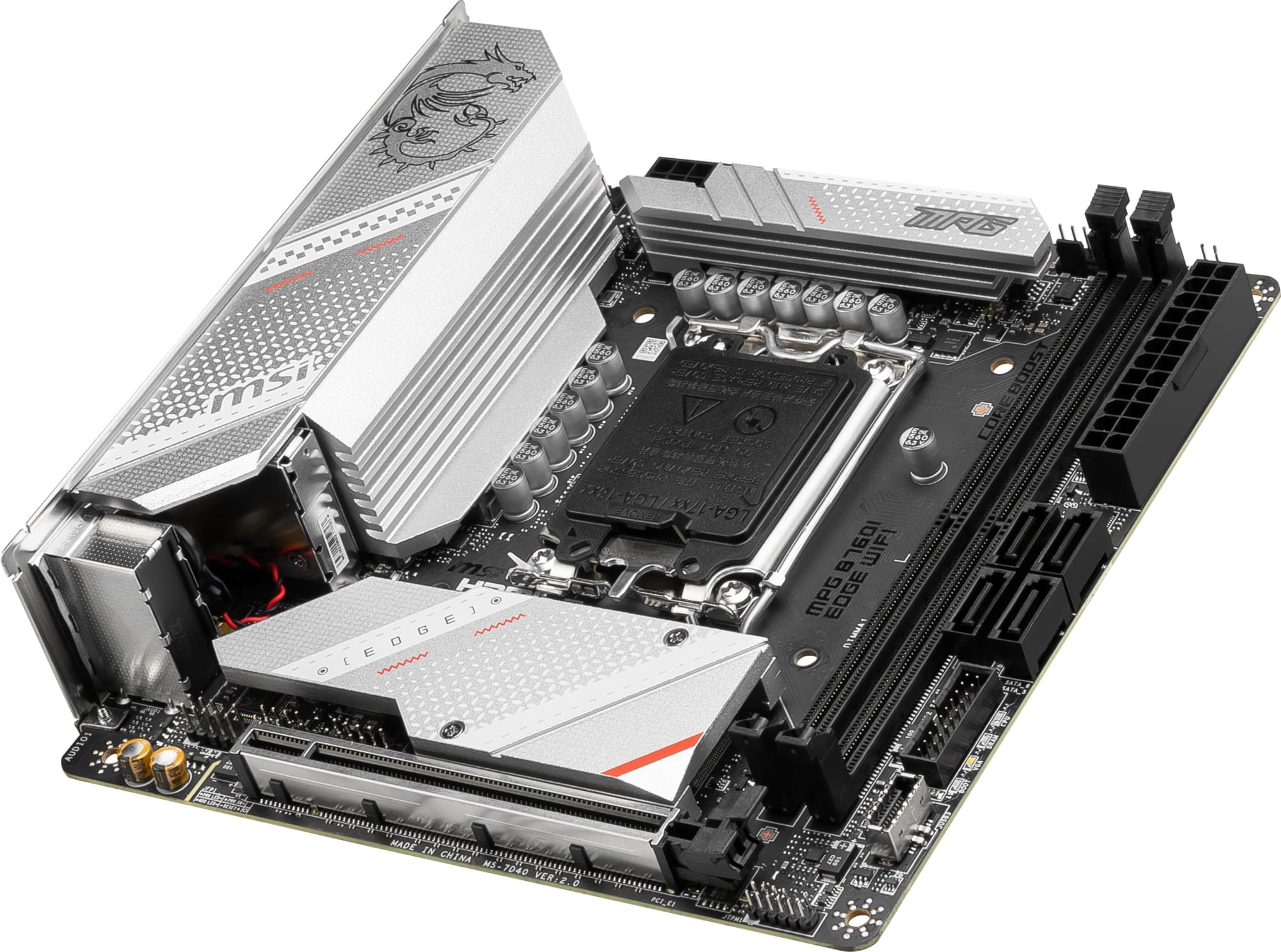

MSI MPG B760I EDGE WIFI DDR5 Intel B760 Raptor Lake Socket LGA 1700 Mini-ITX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

MSI MPG B760I EDGE WIFI DDR5 Intel B760 Raptor Lake Socket LGA 1700 Mini-ITX Desktop Motherboard

Product ID: 44955

In stock with Supplier

Lead time before dispatch; 2 - 5 business days

Be the first to review this product

- Mini-ITX Form Factor
- Intel B760 Chipset
- Socket LGA 1700
- Supports Intel 12th, 13th, 14th Gen Processors
- 2x DDR5 DIMM Slots, Supports Up to 96GB
- Supports up to DDR5-7200 (OC)
- Supports Intel XMP 3.0 Memory
- 1x PCIe 5.0 x16 Slot (x16 Physical)
- 2x M.2 2280 PCIe 4.0 x4 NVMe SSD Slots
- 4x SATA 3.0 Ports
- 1x USB 10Gb/s Type-C Port
- 1x USB 10Gb/s Type-A Port
- 4x USB 5Gb/s Type-A Ports
- 2x USB 2.0 Type-A Ports
- 1x HDMI 2.1, 1x DisplayPort 1.4 Port
- 2x SMA Connectors
- 3x 3.5mm Audio Jacks (Line In, Line Out, Microphone)
- Realtek Dragon RTL8125BG 2.5 Gigabit Ethernet RJ-45 LAN Port
- intel AX210 WiFi 6E 2x2 MIMO Tri-Band Adapter, Bluetooth 5.3
- Realtek ALC897 High-Definition Audio Codec
- 8+1+1 Phase Digital VRM Solution
- MSI M.2 Shield Frozr Heatsinks
- MSI Mystic Light RGB Sync
- MSI EZ Debug LEDs
- Supports Windows 10, Windows 11 64-bit
- 3 Year Warranty

134 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R3,899.00

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (0)
Questions (0)

Product Description

SPECIFICATIONS
Brand	MSI
Series	MPG Series
Model	MPG B760I EDGE WIFI DDR5
CPU Support	Supports 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Chipset	Intel B760 Express
Memory Support
Intel 12th, 13th, 14th Gen Processors	2x DDR5, Maximum Memory Capacity 96GB
	Memory Support 7200 (OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
	Max. overclocking frequency:
	1DPC 1R Max speed up to 7200 MHz
	1DPC 2R Max speed up to 6600 MHz
	Supports Dual-Channel mode
	Supports non-ECC, un-buffered memory
	Supports Intel Extreme Memory Profile (XMP) 3.0
Video
HDMI	1x HDMI 2.1 port, supporting a maximum resolution of 4096x2160 @ 60Hz, supports HDCP 2.3
DisplayPort	1x DisplayPort 1.4 port, supporting a maximum resolution of 8K 7680 x 4320 @ 60Hz, supports HDCP 2.3
DisplayPort	Integrated Intel graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 5.0 x16 Physical, x16 Electrical Slot (PCIE1)
Storage
CPU Direct	M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
Intel B760 Chipset	M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices
	4 x SATA3 6.0 Gb/s Connectors
	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Networking
LAN	Realtek Dragon RTL8125BG 2.5 Gigabit LAN Port 10/100/1000/2500Mbps
WiFi	Intel WiFi 6E 2x2 MIMO Tri-Band Adapter
Bluetooth	Bluetooth 5.3
Audio
Codec	Realtek ALC897 High Definition Audio
Codec	2/4/5.1/7.1-channel support with front-panel jack retasking

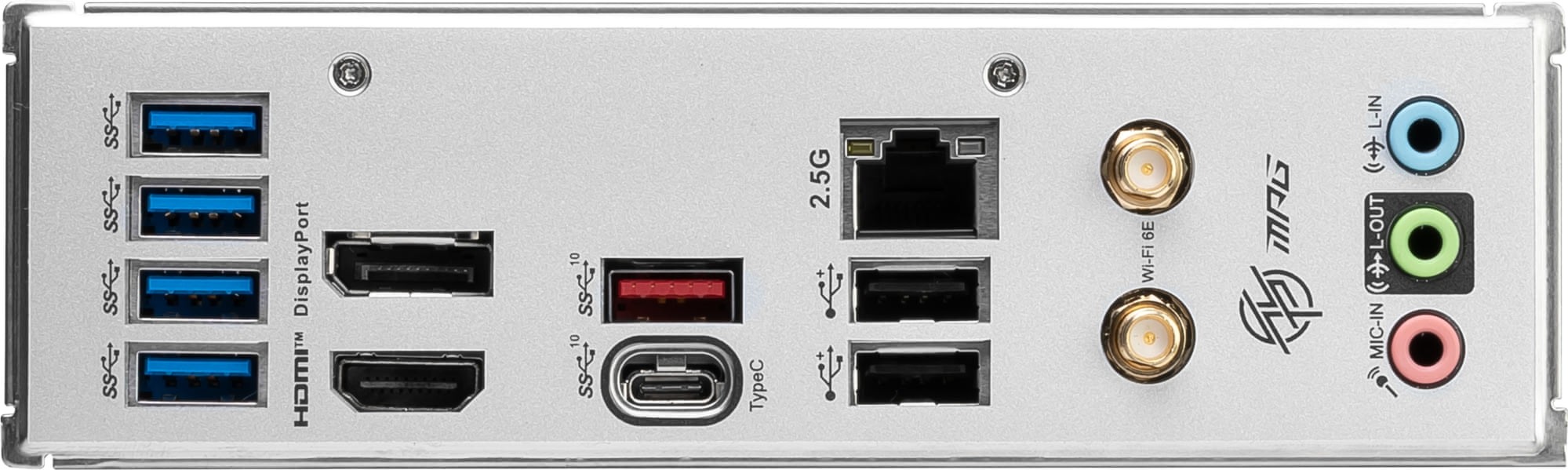

Connectivity
Ports	1x USB 10Gb/s Type-C Port
	1x USB 10Gb/s Type-A Port
	4x USB 5Gb/s Type-A Ports
	2x USB 2.0 Type-A Ports
	1x HDMI 2.1
	1x DisplayPort 1.4 Port
	2x SMA Connectors
	3x 3.5mm Audio Jacks (Line In, Line Out, Microphone)
	1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
Buttons	N/A
General

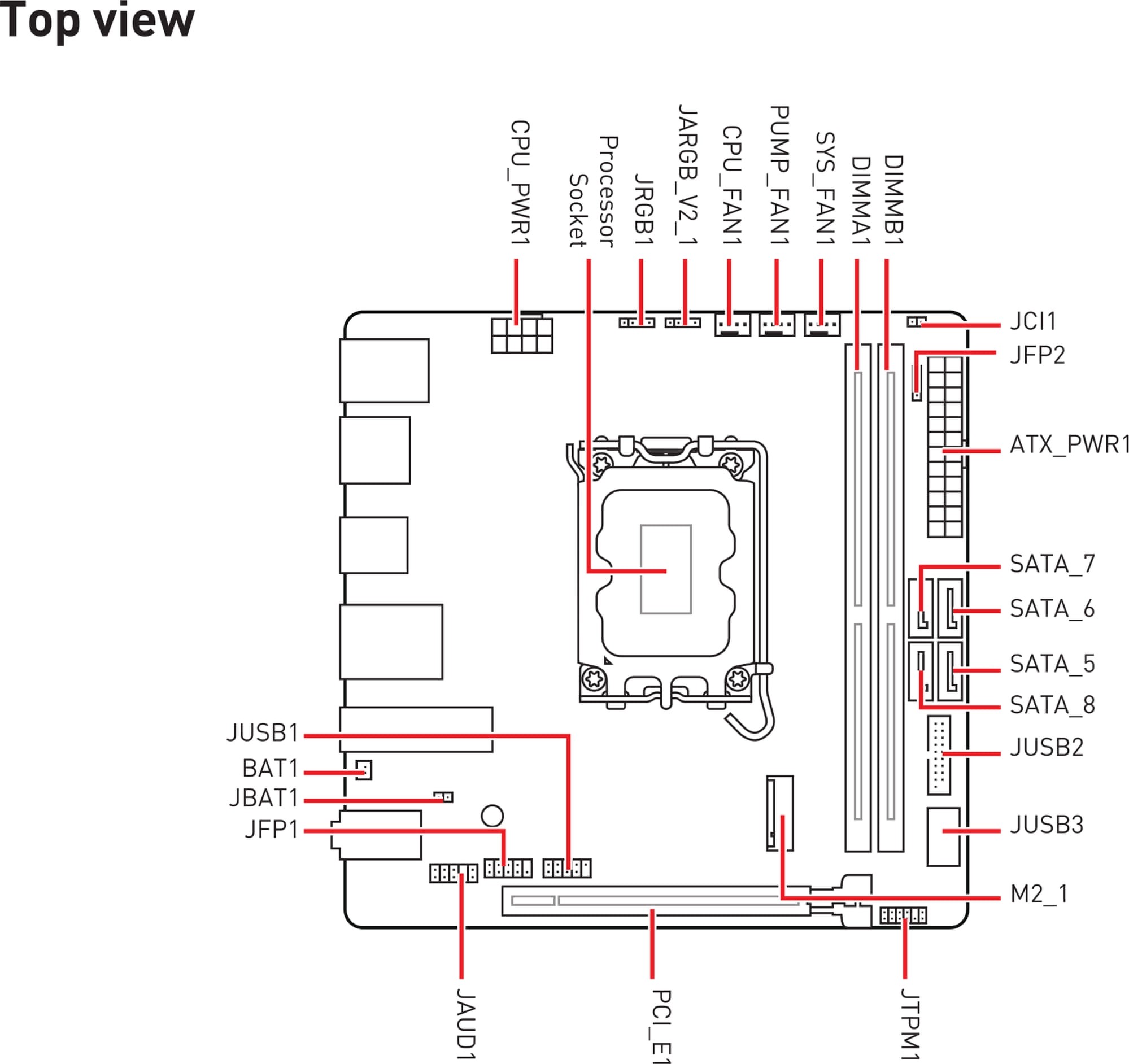

Internal Connectors	1x Power Connector(ATX_PWR)
	1x Power Connector(CPU_PWR)
	1x CPU Fan
	1x Pump Fan
	1x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Addressable V2 RGB LED connector (JARGB_V2)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	2x USB 2.0 ports
	2x USB 3.2 Gen1 Type A ports
	1x USB 3.2 Gen2 Type C ports
LED Displays	MSI EZ Debug LED
I/O Controller	NUVOTON NCT6687D-M Controller Chip
BIOS	256Mb Flash, AMI UEFI Legal BIOS with GUI support
BIOS	ACPI 6.4, SMBIOS 3.5
Form Factor	Mini-ITX Form Factor, 170 x 170mm (H x W)
Operating System Support	Windows 10 64-bit
Operating System Support	Windows 11 64-bit
Boxed Accessories	Quick Installation Guide
	2x M.2 screw & standoff set
	1x SATA Cable
	1x Pair Movable WiFi antenna
	1x Rainbow RGB LED Extension Cable
	Pack of Cable stickers
Warranty Information
Warranty	3 Year Warranty
