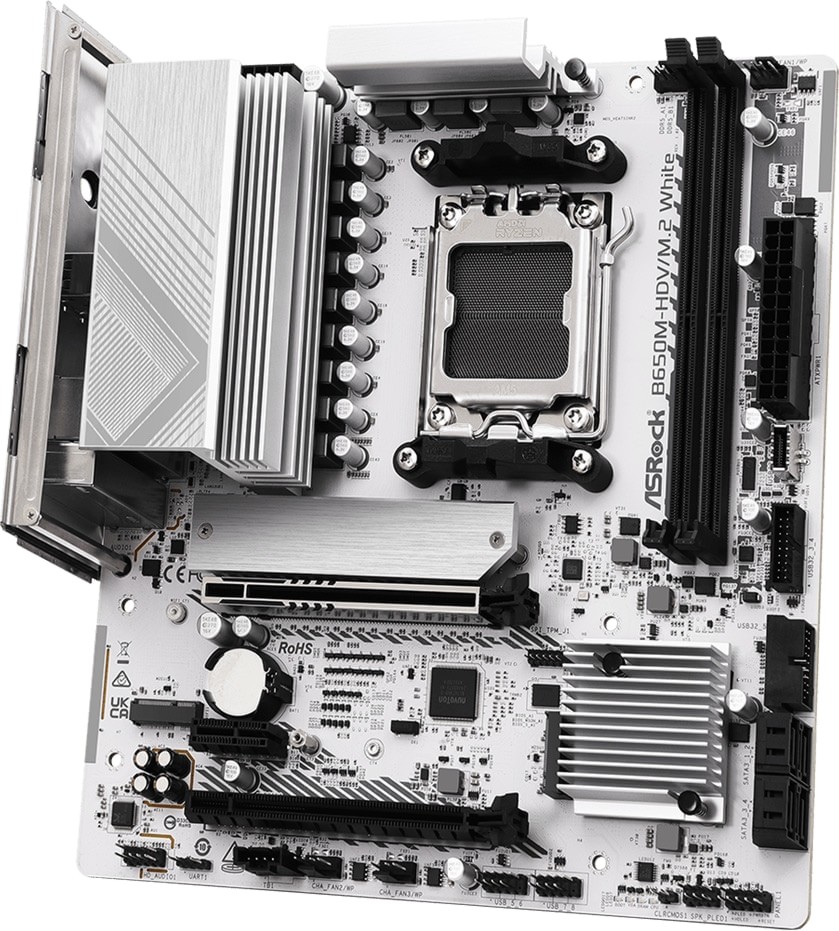

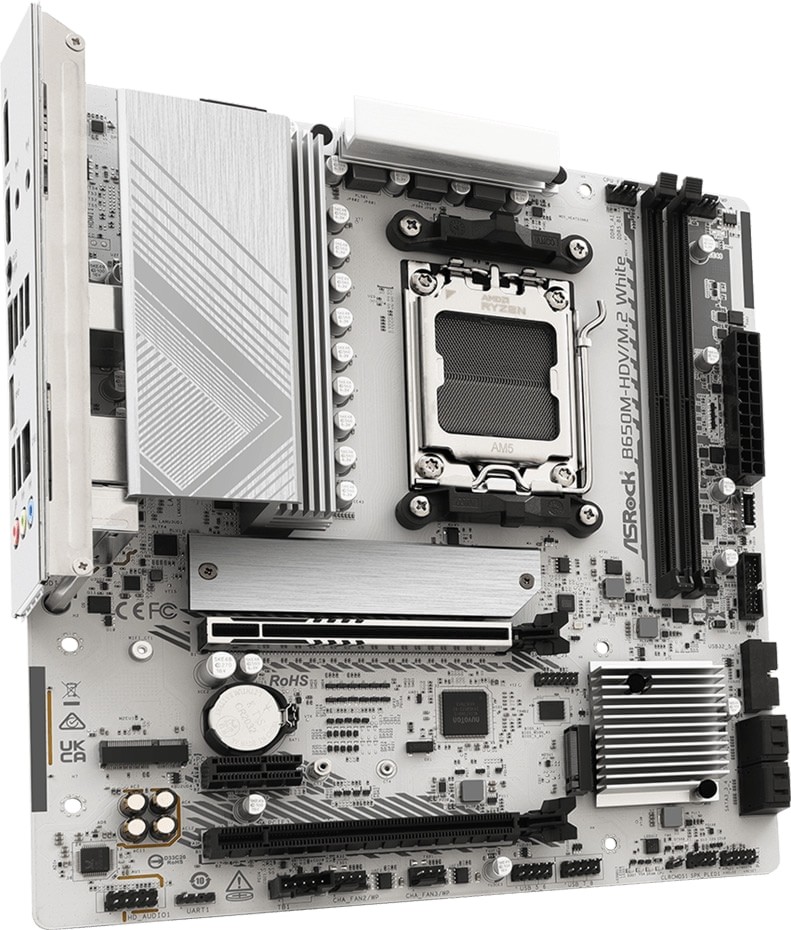

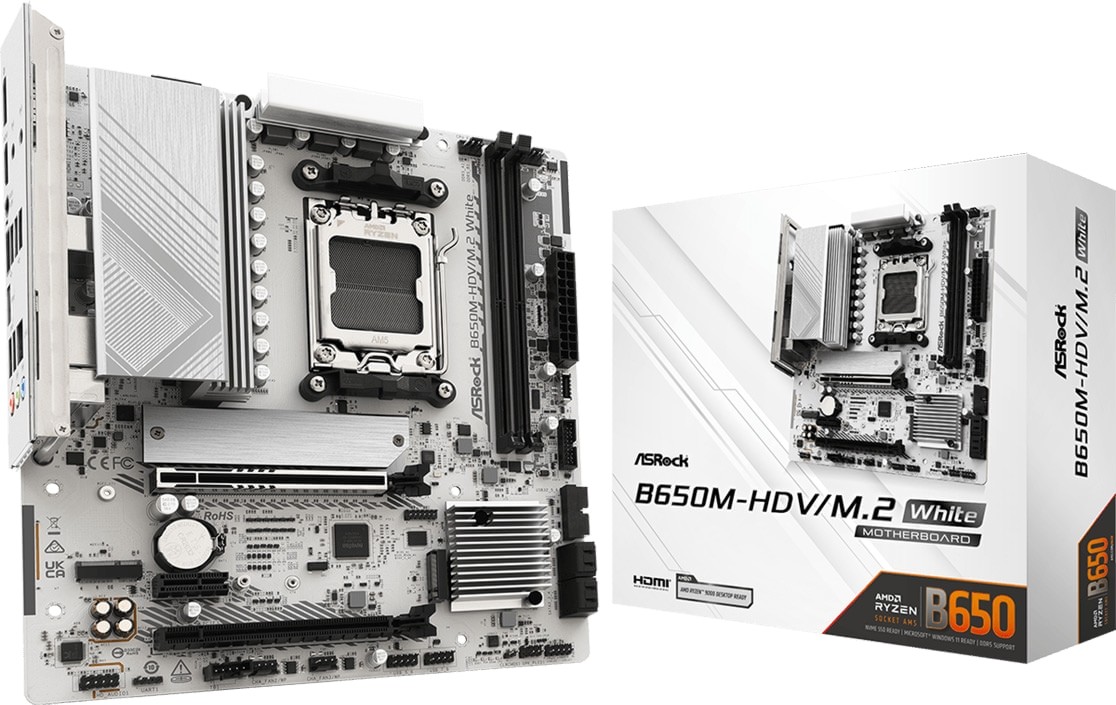

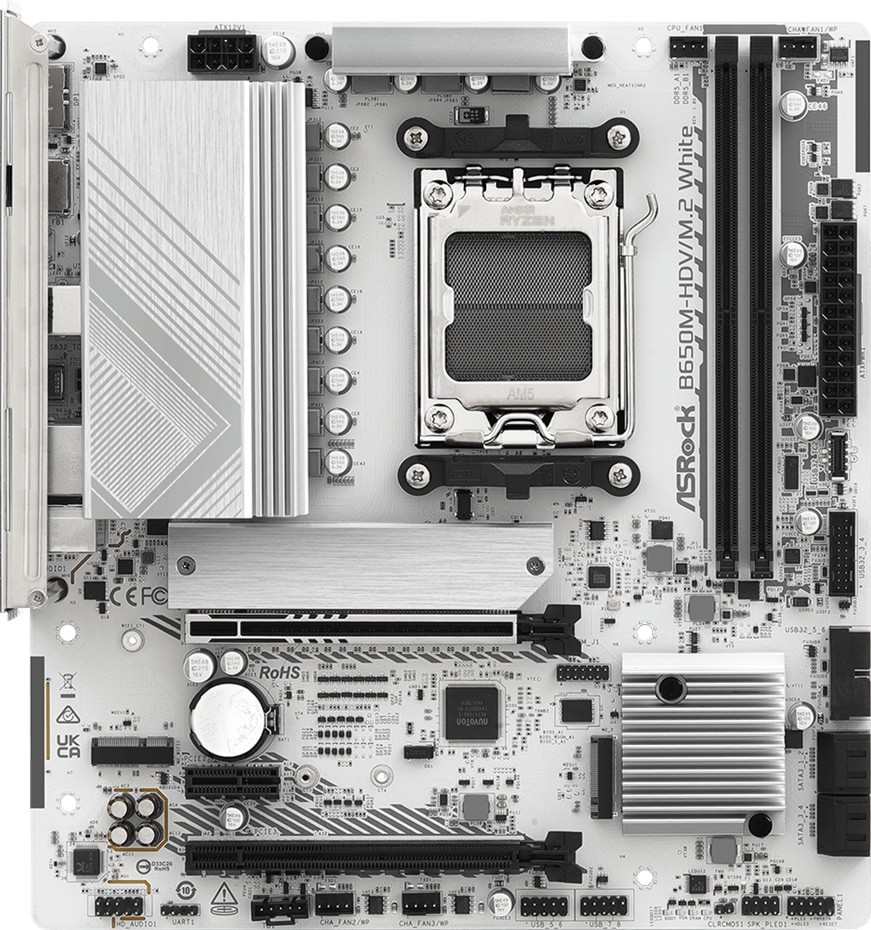

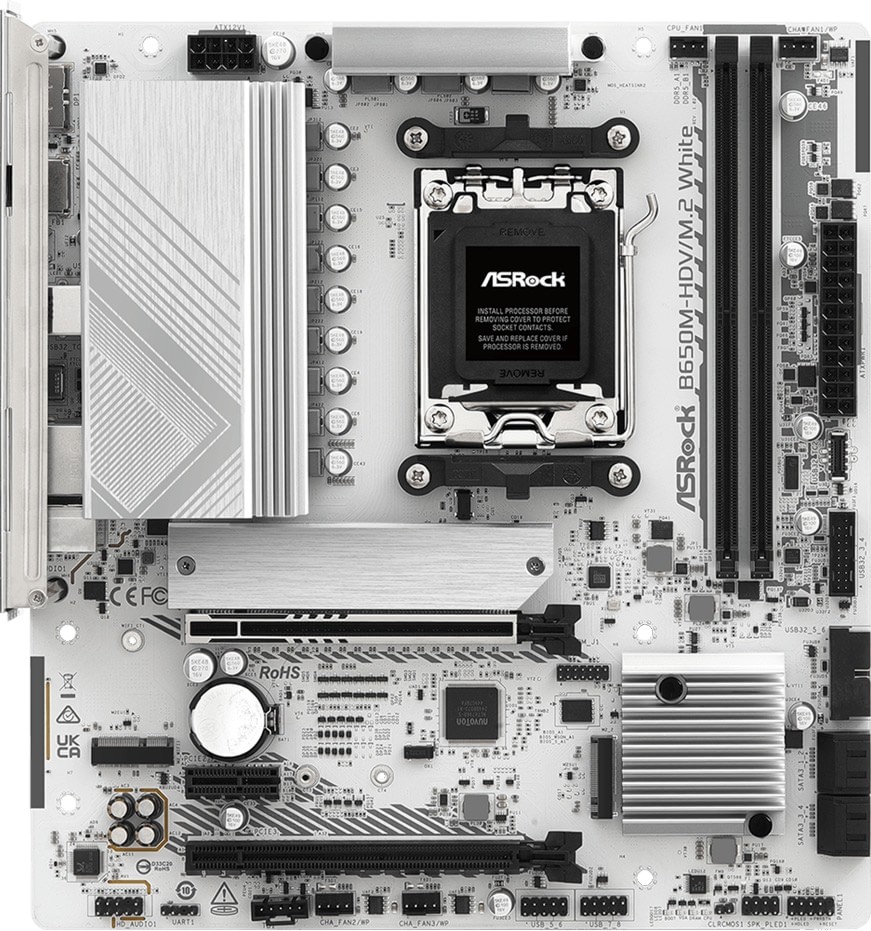

ASRock B650M-HDV/M.2 White Edition AMD B650 Ryzen Socket AM5 Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

ASRock B650M-HDV/M.2 White Edition AMD B650 Ryzen Socket AM5 Micro-ATX Desktop Motherboard

Product ID: 53185

Be the first to review this product

- Micro-ATX Form Factor
- AMD B650 Chipset
- Socket AM5
- Supports Ryzen 7000, 8000 & 9000-Series Processors
- ASRock BIOS Flashback Supports Future Processors
- 2x DDR5 DIMM Slots, Supports Up to 128GB
- Supports up to DDR5-8200 (OC)
- Supports AMD EXPO & Intel XMP 3.0 Memory Modules
- 1x PCIe 4.0 x16 Slot
- 1x PCIe 4.0 x4 Slot (x16 Physical)
- 1x PCIe 4.0 x1 Slot
- 1x M.2 2230 Key E Slot (WiFi Cards)
- 1x M.2 2280 PCIe 5.0 x4 NVMe SSD Slot
- 1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot
- 4x SATA 3.0 Ports
- USB 10Gb/s Type-C Front-Panel Header
- 1x USB 5Gb/s Type-C Port
- 2x USB 5Gb/s Type-A Ports
- 4x USB 2.0 Type-A Ports
- 1x DisplayPort 1.4, 1x HDMI 2.1
- 3x 3.5mm Audio Jacks (Line In, Line Out, Microphone)
- 2x SMA Connectors
- Realtek Dragon 2.5 Gigabit Ethernet RJ-45 LAN
- Realtek Dragon LAN Software
- Realtek ALC897 High-Definition Audio Codec
- Nahimic Audio by Steelseries
- 8+2+1 Power Phase Dr.MOS Solution
- ASRock LED Diagnostic Array
- ASRock Blazing M.2 Heatsink
- ASRock PolyChrome RGB Software
- Supports Windows 10, Windows 11 64-bit
- Colour: White
- 3 Year Warranty

13 Products

Out of Stock

Add to Wishlist

Customers Who Viewed This Product Purchased

Gigabyte B650-EAGLE-AX B650 EAGLE AX WIFI 6E AMD B650 Ryzen Socke...

Stock Coming Soon

R4,649.00

R3,499.00

Save: R 1,150!

8 Review(s)

Sapphire 52112-04-40G B650M-E AMD B650 Ryzen Socket AM5 Micro-ATX...

In stock with Wootware

R3,299.00

R2,199.00

Save: R 1,100!

Gigabyte B650M GAMING WIFI6E AMD B650 Ryzen Socket AM5 Micro-ATX ...

Stock Coming Soon

R3,349.00

R2,599.00

Save: R 750!

Gigabyte GA-B650M-D3HP B650M D3HP AMD B650 Ryzen Socket AM5 Micro...

Stock Coming Soon

R3,099.00

R2,499.00

Save: R 600!

1 Review(s)

Gigabyte B650 UD AX WiFi AMD B650 Ryzen Socket AM5 ATX Desktop Mo...

In stock with Wootware

R4,699.00

R3,149.00

Save: R 1,550!

MAXSUN Challenger B650M WIFI V2 AMD B650 Ryzen Socket AM5 Micro-A...

In stock with Wootware

R2,999.00

R1,899.00

Save: R 1,100!

MSI PRO B650-S WIFI 6E AMD B650 Ryzen Socket AM5 ATX Desktop Moth...

In stock with Wootware

R4,099.00

R3,649.00

Save: R 450!

2 Review(s)

ASRock B650M-HDV/M.2 AMD B650 Ryzen Socket AM5 Micro-ATX Desktop ...

In stock with Supplier

R2,225.00

Gigabyte B650-AORUS-ELITE-AX-V2 B650 AORUS ELITE AX V2 AMD B650 R...

In stock with Supplier

R4,489.00

3 Review(s)

Gigabyte B650M AORUS ELITE AMD B650 Ryzen Socket AM5 Micro-ATX De...

In stock with Supplier

R3,578.00

1 Review(s)

Product Description
Additional Information
Reviews (0)

Product Description

SPECIFICATIONS
Brand	ASRock
Series	B650 Series
Model	B650M-HDV/M.2 White
CPU Support	AMD Socket AM5 for AMD Ryzen 7000, 8000, 9000 Series Desktop Processors
Chipset	AMD B650
Memory Support
AMD Ryzen 7000 Series	Dual Channel DDR5 Memory Technology
	2x DDR5 DIMM Slots
	Supports DDR5 non-ECC, un-buffered memory up to 8200 MT/s (OC)
	Max. capacity of system memory: 128GB
	Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Video
HDMI	1x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
DisplayPort	1x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
DisplayPort	Integrated AMD RDNA 2 graphics Required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 4.0 x16 Physical, x16 Electrical Slot (PCIE1)
CPU Direct	1x PCIe 4.0 x16 Physical, x4 Electrical Slot (PCIE3)
AMD B650 Chipset	1 x PCIe 4.0 x1 Physical Slot
	1x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
	Supports NVMe SSD as boot disk
Storage
CPU Direct	1x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
AMD B650 Chipset	1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
	4 x SATA3 6.0 Gb/s Connectors
	Supports RAID 0 and RAID 1 for SATA storage devices
	Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
	Requires additional M.2 NVMe expansion cards to support RAID 10.
Networking
LAN	Realtek Dragon RTL8125BG 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
LAN	Dragon 2.5G LAN Software
WiFi	N/A, reserved M.2 Key E Slot for WiFi cards
Bluetooth	N/A
Audio
Codec	Realtek ALC897 High Definition 7.1 CH HD Audio
Codec	Nahimic Audio by Steelseries

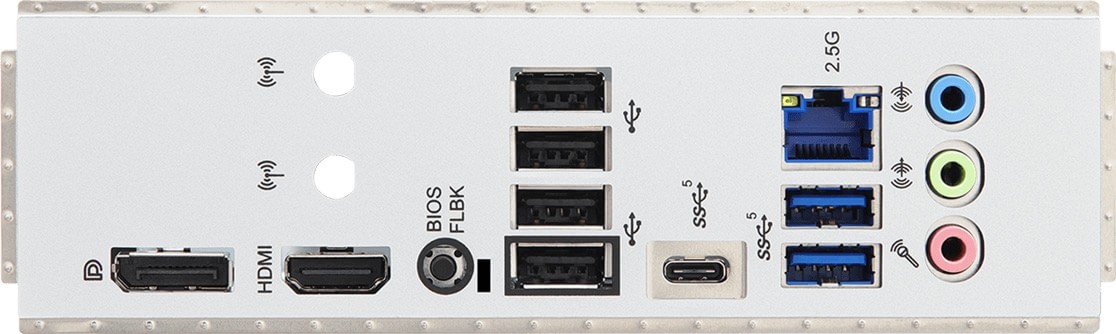

Connectivity
Ports	2x Antenna Mounting Points
	1x HDMI Port
	1x DisplayPort 1.4
	1x USB 3.2 Gen1 Type-C Port
	2x USB 3.2 Gen1 Type-A Ports
	4x USB 2.0 Ports
	1x RJ-45 LAN Port
	1x BIOS Flashback Button
	3x HD Audio Jacks: Line in / Front Speaker / Microphone
Buttons	1x BIOS Flashback Button
General
Internal Connectors	1x SPI TPM Header
	1x Power LED and Speaker Header
	1x CPU Fan Connector (4-pin)*
	3x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
	1x 24 pin ATX Power Connector
	1x 8 pin 12V Power Connector
	1x Front Panel Audio Connector
	1x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
	2x USB 2.0 Headers (Support 4 USB 2.0 ports)
	2x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
	1x Front Panel Type C USB 3.2 Gen2 Header
LED Displays	ASRock LED Diagnostic Display
BIOS	256Mb AMI UEFI Legal BIOS with GUI support
Form Factor	Micro-ATX Form Factor, 244 x 226 mm (H x W)
Operating System Support	Windows 10 64-bit
Operating System Support	Windows 11 64-bit
Box Contents	1x User Manual
	2x SATA Data Cables
	2x Screws for M.2 Sockets
Warranty Information
Warranty	3 Year Warranty
