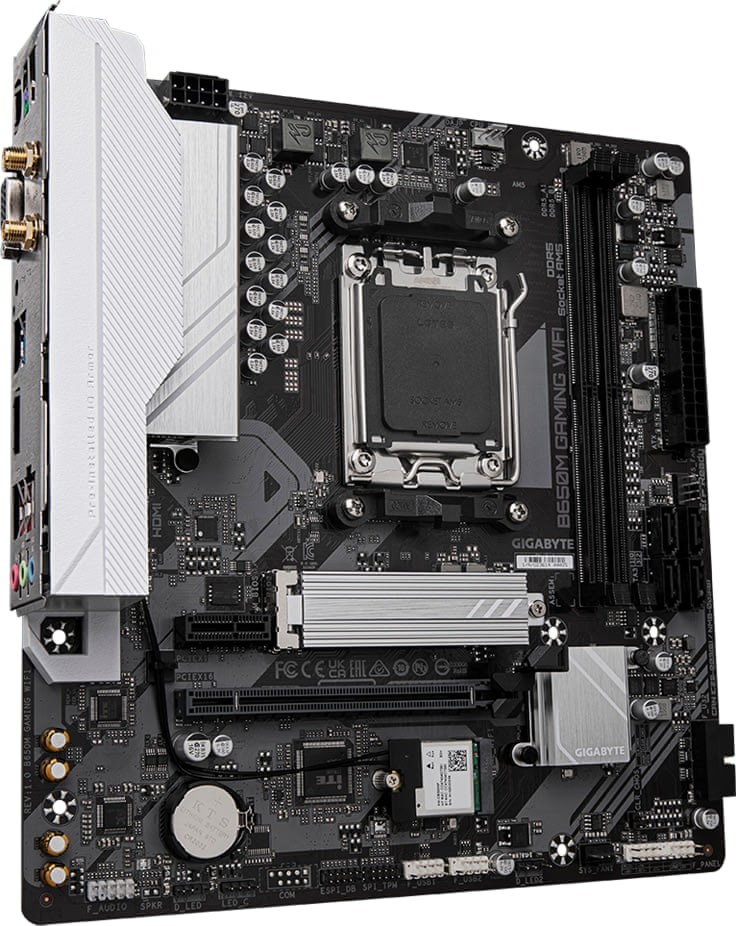

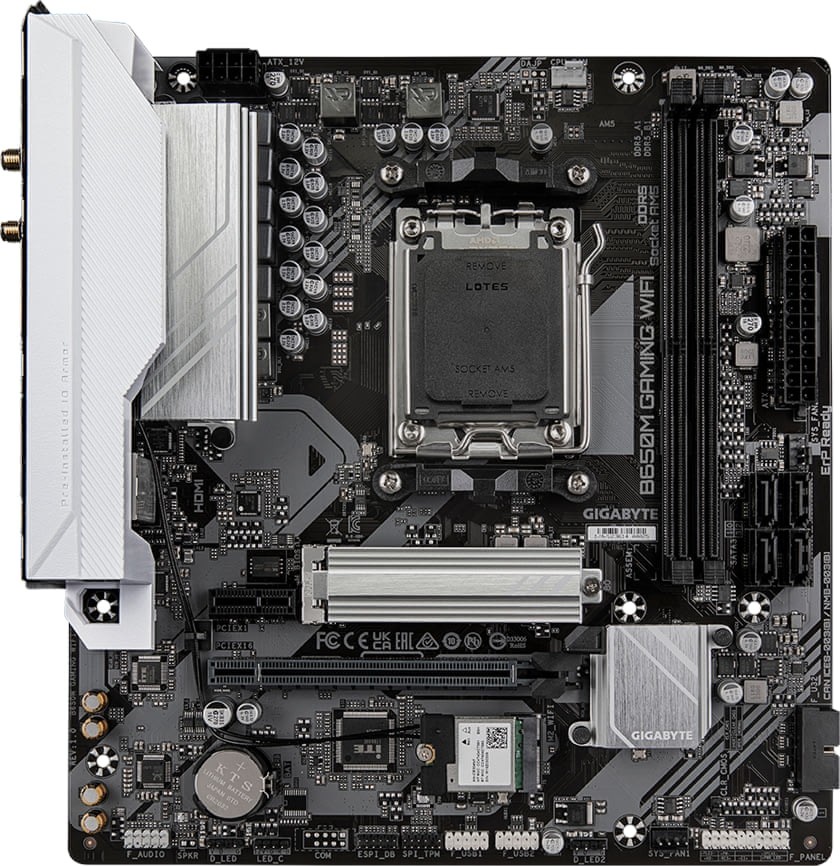

Gigabyte B650M GAMING WIFI AMD B650 Ryzen Socket AM5 Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

Gigabyte B650M GAMING WIFI AMD B650 Ryzen Socket AM5 Micro-ATX Desktop Motherboard

Product ID: 50188

- Micro-ATX Form Factor
- AMD B650 Chipset
- Socket AM5
- 2x DDR5 DIMM Slots, Supports Up To 128GB
- Supports Up to DDR5-6400MHz+ (OC)
- Supports AMD EXPO DDR5 Modules
- 1x PCIe 4.0 x16 Slot, 1x PCIe 3.0 x1 Slot
- 1x M.2 PCIe NVMe Gen 4 x4 2580/2280 Slots
- 4x SATA 3.0 6.0Gbps Ports
- 4x USB 2.0/1.1 Ports, 2x USB 3.2 Gen 1 Ports
- 1x PS/2 keyboard/mouse Port, 1x D-Sub Port
- 1x Q-Flash Plus button, 1x HDMI Port
- 1x RJ-45 Port, 3x Audio Jacks
- 802.11ac Dual-band WiFi 5 Adapter
- Bluetooth v4.2
- Realtek Audio CODEC
- 5+2+2 Phases Digital VRM Solution
- EZ-Latch: PCIe x16 Slot with Quick Release Design
- Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus
- Gigabyte RGB FUSION
- 3 Year Warranty

159 Products

Out of Stock

Add to Wishlist

WE RECOMMEND

Gigabyte B650M GAMING WIFI6E AMD B650 Ryzen Socket AM5 Micro-ATX ...

5
% LESS

Stock Coming Soon

R3,349.00

R2,599.00

Save: R 750!

- WiFi 6E Tri-Band Adapter
- Bluetooth v5.3

Product Description
Additional Information
Reviews (0)

Product Description

SPECIFICATIONS
Brand	Gigabyte
Series	GAMING WIFI
Model	B650M GAMING WIFI
CPU	AMD Socket AM5, support for:
	AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
	(Go to GIGABYTE's website for the latest CPU support list.)
Chipset	AMD B650
Memory	Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
	2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme
	Memory Profile (XMP) memory modules
	(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon Graphics support:
	- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
	- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
	* Support for HDMI 2.1 version and HDCP 2.3.
	** Support for native HDMI 2.1 TMDS compatible ports.
	(Graphics specifications may vary depending on CPU support.)
Audio	Realtek Audio CODEC
	High Definition Audio
	2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication Module	AzureWave Wi-Fi AW-CB304NF (Realtek RTL8821CE)
	- WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
	- BLUETOOTH 4.2
	- Support for 11ac wireless standard
	(Actual data rate may vary depending on environment and equipment.)
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
	- AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x16 mode
	- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
	- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
	* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
	Chipset:
	- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface	1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
	- AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x4/x2 SSDs
	- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
	- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
	4 x SATA 6Gb/s connectors
	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
	RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU:
	- 2 x USB 3.2 Gen 1 ports on the back panel
	- 1 x USB 2.0/1.1 port on the back panel
	Chipset:
	- 2 x USB 3.2 Gen 1 ports available through the internal USB header
	- 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through
	the internal USB header)
	Chipset+USB 2.0 Hub:
	- 2 x USB 2.0/1.1 ports available through the internal USB header
Internal I/O Connectors	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	2 x system fan headers
	2 x addressable LED strip headers
	1 x RGB LED strip header
	1 x M.2 Socket 3 connector
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
	1 x Clear CMOS jumper

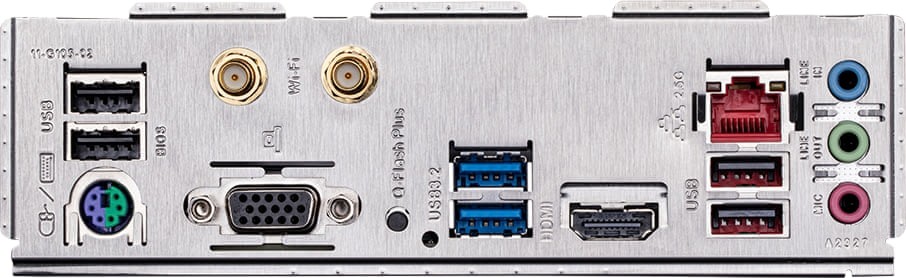

Back Panel Connectors	4 x USB 2.0/1.1 ports
	1 x PS/2 keyboard/mouse port
	1 x D-Sub port
	1 x Q-Flash Plus button
	2 x USB 3.2 Gen 1 ports
	1 x HDMI port
	1 x RJ-45 port
	3 x audio jacks
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection
	Temperature detection
	Fan speed detection
	Water cooling flow rate detection
	Fan fail warning
	Fan speed control
	* Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1 x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC)
	* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	Support for Q-Flash
	Support for Q-Flash Plus
Operating System	Support for Windows 11 64-bit
Operating System	Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor
Form Factor	24.0cm x 22.5cm
Warranty Information
Warranty	3 Year Warranty
