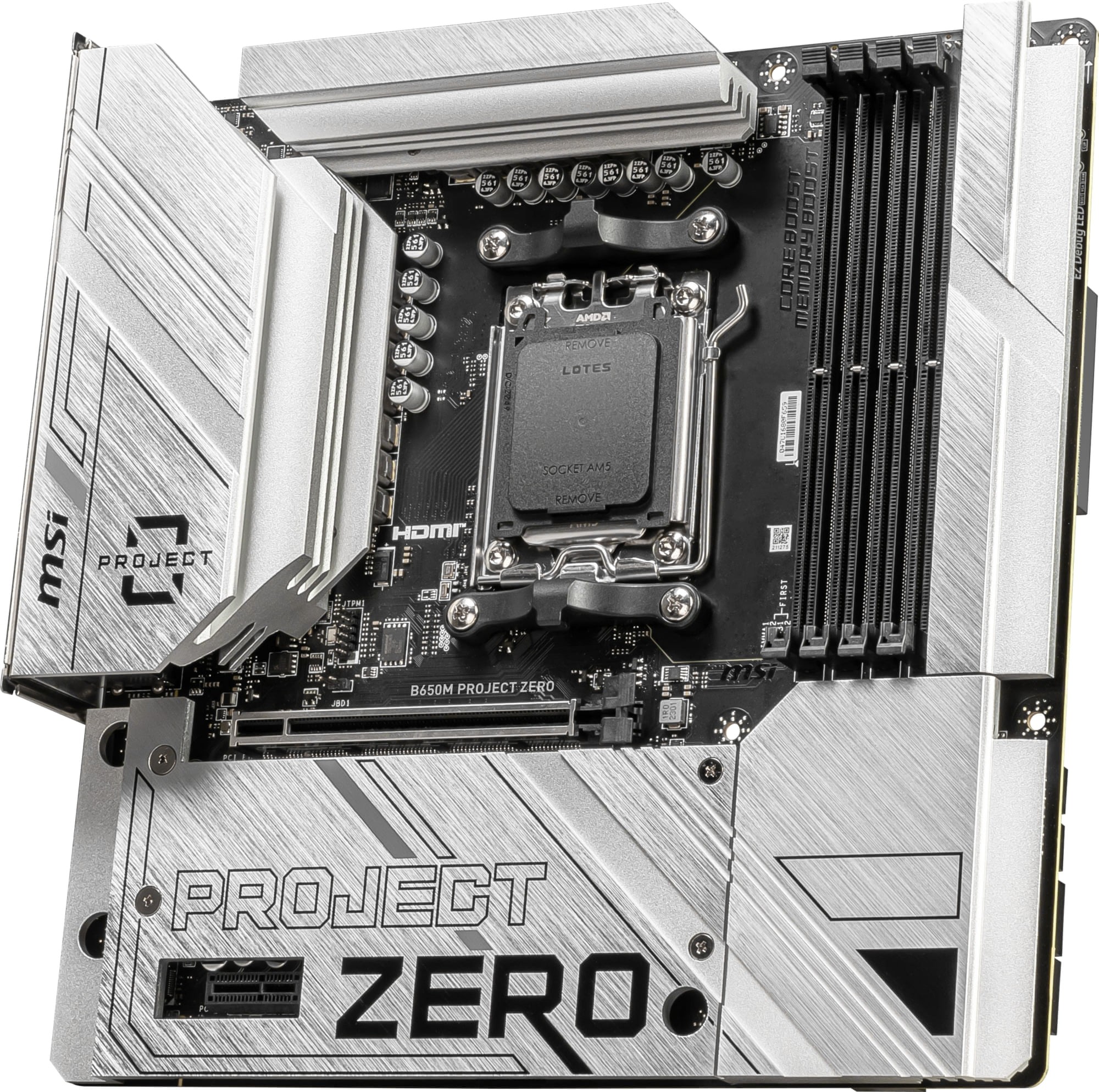

MSI B650M PROJECT ZERO WiFi 6E AMD B650 Ryzen Socket AM5 Micro-ATX YTX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

MSI B650M PROJECT ZERO WiFi 6E AMD B650 Ryzen Socket AM5 Micro-ATX YTX Desktop Motherboard

Product ID: 46718

In stock with Supplier

Lead time before dispatch; 2 - 5 business days
Limited stock with Supplier

1 Review(s) | Add Your Review

- Micro-ATX Form Factor
- YTX Reversed Connector Design
- AMD B650 Chipset
- Socket AM5
- Supports Ryzen 7000 & 8000-Series Processors
- BIOS Flashback Supports Future Processors
- Supports USB Type-C Front-Panel Header
- 4x DDR5 DIMM Slots, Supports Up to 192GB
- Supports up to DDR5-7600 (OC)
- Supports AMD EXPO Memory
- 1x PCIe 4.0 x16 Slot (x16 Physical)
- 1x PCIe 3.0 x1 Slot (x1 Physical)
- 2x M.2 2280 PCIe 4.0 x4 NVMe SSD Slots
- 4x SATA 3.0 Ports
- 1x USB 20Gbps Type-C Port
- 1x USB 10Gbps Type-C Port
- 3x USB 10Gbps Type-A Ports
- 2x USB 5Gbps Type-A Ports
- 2x USB 2.0 Type-A Ports
- 1x HDMI 2.1 Port
- 1x DisplayPort 1.4 Port
- 2x SMA Connectors
- 3x 3.5mm Audio Jacks (Line In, Line Out, Microphone)
- Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
- WiFi 6E Tri-Band Adapter, Bluetooth 5.3
- Realtek ALC897 High-Definition Surround Audio Codec
- MSI 10+2 Phase Digi+ VRM Solution
- MSI Mystlic Light RGB Software
- MSI EZ Debug LED Diagnostic Array
- MSI Center Utility
- Supports Windows 11 64-bit
- 3 Year Warranty

91 Products

- Please note: This motherboard has reversed connectors. It is incompatible with standard Micro-ATX chassis. Please consult the list of supported chassis for compatibility.

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R4,399.00

Qty:

Add to Wishlist

Features
Product Description
Additional Information
Reviews (1)

Features Product Description

SPECIFICATIONS
Brand	MSI
Series	Project Zero Series
Model	B650M PROJECT ZERO
CPU Support	Supports Ryzen 7000 & 8000 Series Processors
Chipset	AMD B650 Chipset
Memory Support
AMD B650 Chipset	4x DDR5, Maximum Memory Capacity 256GB
	Memory Support DDR5 7600 (OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
	Max. overclocking frequency:
	1DPC 1R Max speed up to 7600 MHz
	1DPC 2R Max speed up to 6400 MHz
	2DPC 1R Max speed up to 6400 MHz
	2DPC 2R Max speed up to 5400 MHz
Video
DisplayPort	1x DisplayPort 1.4 Port, supporting a maximum resolution of 3840x2160@ 60Hz, supports HDCP, HDR
HDMI	1x HDMI 2.1 Port, supporting a maximum resolution of 3840x2160@ 60Hz, supports HDCP, HDR
HDMI	Integrated graphics required. Actual support may vary by CPU.

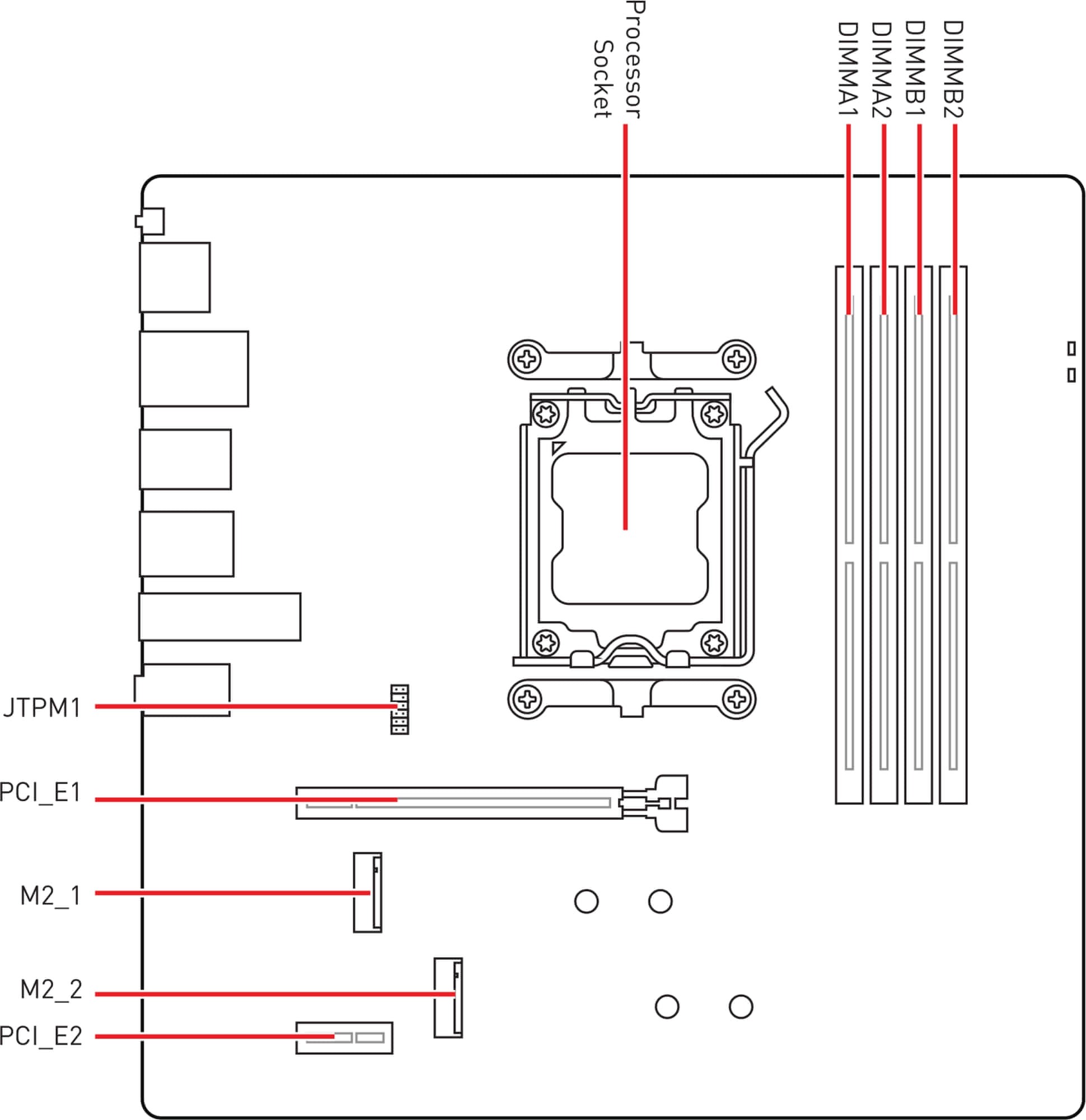

Expansion Slots
CPU Direct	1x PCIe 4.0 x16 Electrical Slots (x16 Physical) (PCIEX16)
AMD B650 Chipset	3x PCIe 3.0 x1 Electrical Slots (x16 Physical)
Slot Configurations	PCIEX16 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x8 mode
Slot Configurations	PCIEX16 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4 mode
Storage
CPU Direct	M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
CPU Direct	M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
AMD B650 Chipset	4x SATA 6Gbps connectors
	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
	RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Storage Configurations	M.2_1 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
	M.2_1 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
	M.2_2 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x2 SSDs
Networking
LAN	Realtek 2.5 Gigabit LAN 10/100/1000/2500Mbps
WiFi	WiFi 6E 2x2 MIMO Tri-Band Adapter
Bluetooth	Bluetooth 5.3
Audio
Codec	Realtek High-Definition Audio Codec
Codec	Support for 7.1 Surround with front-panel jack retasking

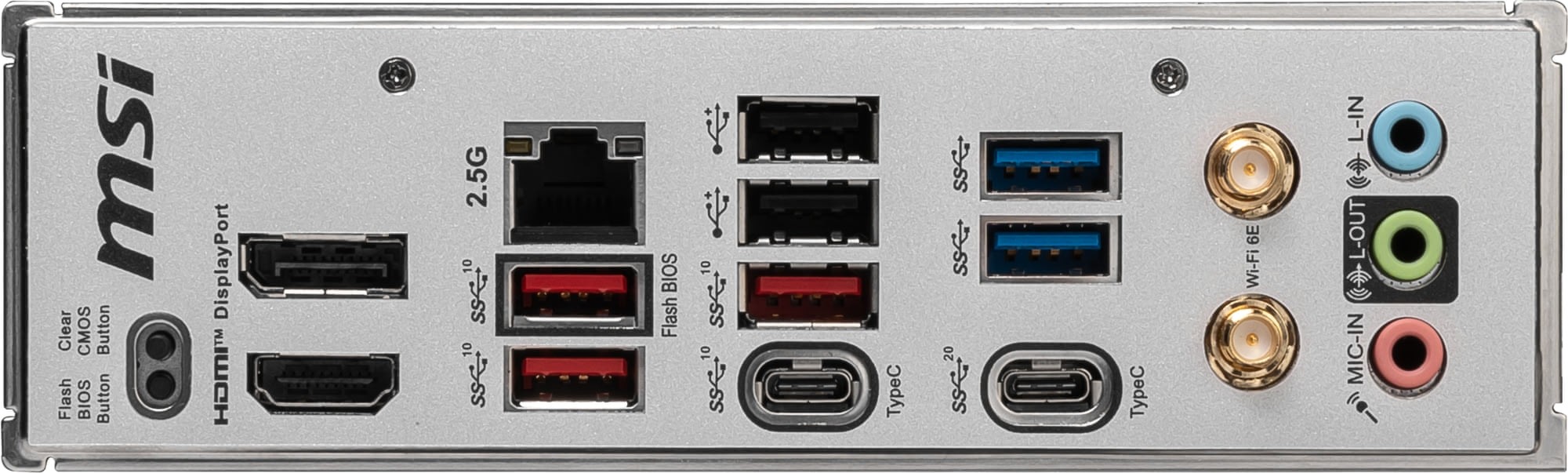

Connectivity
Ports	1x USB 20Gbps Type-C Port
	1x USB 10Gbps Type-C Port
	3x USB 10Gbps Type-A Ports
	2x USB 5Gbps Type-A Ports
	2x USB 2.0 Type-A Ports
	1x HDMI 2.1 Port
	1x DisplayPort 1.4 Port
	2x SMA Connectors
	3x 3.5mm Audio Jacks (Line In, Line Out, Microphone)
	1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
Buttons	1x Flash BIOS button, 1x Clear CMOS Button
General
Internal Connectors	1x Power Connector(ATX_PWR)
	2x Power Connector(CPU_PWR)
	1x CPU Fan
	1x Pump Fan
	3x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	3x Addressable V2 RGB LED connector (JARGB_V2)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0 ports
	2x USB 5Gbps Type A ports
	1x USB 10Gbps Type C ports
LEDs	4x EZ Debug LEDs
I/O Controller	NUVOTON NCT6687D-R Controller Chip
BIOS	1x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, ACPI 6.4, SMBIOS 3.4
Form Factor	Reversed Micro-ATX Form Factor, 243.84 x 243.84 mm (H x W)
Operating System Support	Windows 10 64-bit
Operating System Support	Windows 11 64-bit (recommended)
Boxed Accessories	Users Manual
	1x WiFi antenna
	2x SATA cables
Warranty Information
Warranty	3 Year Warranty
