Gigabyte B650-EAGLE-AX B650 EAGLE AX WIFI 6E AMD B650 Ryzen Socket AM5 ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

Gigabyte B650-EAGLE-AX B650 EAGLE AX WIFI 6E AMD B650 Ryzen Socket AM5 ATX Desktop Motherboard

Customer's Choice

for AMD B650 ATX Motherboards

Product ID: 46164

✅ Please note: There are optional configurations available below. Simply click on an option to include it with your purchase.

WiFi & Bluetooth Adapter (Optional):
ASUS WiFi 7 Tri-Band PCIe Wireless Adapter

R 599.00
- View

In stock with Wootware

Lead time before dispatch; 1 - 2 business days

4.65

9 Review(s) | Add Your Review

- ATX Form Factor
- AMD B650 Chipset
- Socket AM5 Supports Ryzen 7000 & 8000 Series Processors
- 4x DDR5 DIMM Slots, Supports Up to 256GB
- Supports Up to DDR5-7600 (OC)
- Supports AMD EXPO & Intel XMP 3.0
- 1x PCIe 4.0 x16 Slot (x16 Physical)
- 3x PCIe 3.0 x1 Slots (x16 Physical)
- 1x M.2 25110 / 2580 PCIe 5.0 x4 NVMe SSD Slot
- 1x M.2 22110 / 2280 PCIe 4.0 x2 NVMe SSD Slot
- 1x M.2 22110 / 2280 PCIe 4.0 x4 NVMe SSD Slot
- 4x SATA 3.0 Ports
- Supports Front-Panel USB Type-C Port
- 1x USB 5Gbps Type-C Port
- 2x USB 10Gbps Type-A Port
- 6x USB 2.0 Type-A Ports
- 1x DisplayPort 1.4 Port
- 1x HDMI 2.1 Port
- 1x PS/2 Combo Port (Keyboard/Mouse)
- 3x 3.5mm Audio Jacks (Line In, Line Out, Microphone)
- 2x SMA Connectors
- Realtek Gigabit Ethernet RJ-45 LAN
- WiFi 6E 2x2 MIMO Tri-Band Adapter, Bluetooth 5.3
- Realtek High-Definition Audio Codec
- PCIe x16 EZ-Latch Quick-Release Mechanism
- Direct 12+2+2 Phase Digital VRM Solution
- Gigabyte Q-Flash Plus
- Gigabyte M.2 Thermal Guard
- Gigabyte Smart Fan 6 Technology
- Supports Windows 11 64-bit
- 3 Year Warranty

158 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R4,649.00

R3,499.00

Save: R 1,150!

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (9)

Product Description

SPECIFICATIONS
Brand	Gigabyte
Series	EAGLE Series
Model	B650 EAGLE AX (B650-EAGLE-AX)
CPU Support	Supports Ryzen 7000 & 8000 Series Processors
Chipset	AMD B650 Chipset
Memory Support
AMD B650 Chipset	Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
	4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Video
DisplayPort	1x DisplayPort 1.4 Port, supporting a maximum resolution of 3840x2160@144 Hz, supports HDCP, HDR, FreeSync
HDMI	1x HDMI 2.1 Port, supporting a maximum resolution of 4096x2160@60 Hz, supports HDCP, HDR, FreeSync
HDMI	Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 4.0 x16 Electrical Slots (x16 Physical)(PCIEX16)
AMD B650 Chipset	3x PCIe 3.0 x1 Electrical Slots (x16 Physical)
Slot Configurations	PCIEX16 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x8 mode
	PCIEX16 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4 mode
	The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen 8000 Series-Phoenix 2 processor is used.
Storage
CPU Direct	1x M.2 25110 / 2580 PCIe 5.0 x4 NVMe SSD Slot (M2A_CPU)
CPU Direct	1x M.2 22110 / 2280 PCIe 4.0 x2 NVMe SSD Slot (M2P_CPU)
AMD B650 Chipset	1x M.2 22110 / 2280 PCIe 4.0 x4 NVMe SSD Slot (M2C_SB)
	4x SATA 6Gb/s connectors
	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
	RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Storage Configurations	M2A_CPU with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
	M2A_CPU with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
	M2P_CPU with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x2 SSDs
	M2P_CPU with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x2 SSDs
Networking
LAN	Realtek Gigabit LAN 10/100/1000Mbps
WiFi	WiFi 6E 2x2 MIMO Tri-Band Adapter
WiFi	WiFi 6E 6Ghz support requires Windows 11
Bluetooth	Bluetooth 5.3
Bluetooth	Bluetooth 5.3 support requires Windows 11
Audio
Codec	Realtek High-Definition Audio Codec
Codec	Support for 7.1 Surround with front-panel jack retasking
Connectivity

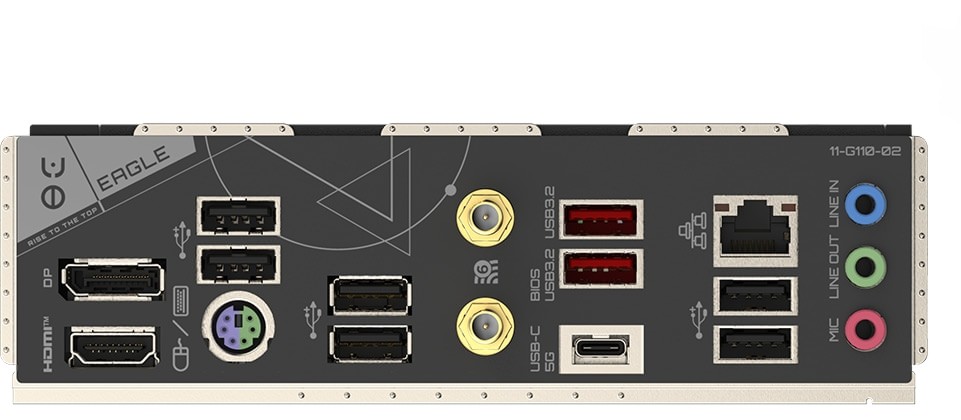

Ports	1x USB 5Gbps Type-C Port
	2x USB 10Gbps Type-A Port
	6x USB 2.0 Type-A Ports
	1x DisplayPort 1.4 Port
	1x HDMI 2.1 Port
	1x PS/2 Combo Port (Keyboard/Mouse)
	3x 3.5mm Audio Jacks (Line In, Line Out, Microphone)
	2x SMA Connectors
	1x Gigabit Ethernet RJ-45 LAN Port
Buttons	1x Q-Flash Plus button
General
Internal Connectors	1x 24-pin ATX main power connector
	1x 8-pin ATX 12V power connector
	1x CPU fan header
	1x CPU fan/water cooling pump header
	2x system fan headers
	1x system fan/water cooling pump header
	3x addressable RGB Gen2 LED strip headers
	1x RGB LED strip header
	3x M.2 Socket 3 connectors
	4x SATA 6Gb/s connectors
	1x front panel header
	1x front panel audio header
	1x USB Type-C header, with USB 3.2 Gen 1 support
	1x USB 3.2 Gen 1 header
	3x USB 2.0/1.1 headers
	1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
	1x Q-Flash Plus button
	1x serial port header
	1x Clear CMOS jumper
I/O Controller	iTE I/O Controller Chip
BIOS	1 x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor, 305 x 244 mm (H x W)
Operating System Support	Windows 10 64-bit
Operating System Support	Windows 11 64-bit
Boxed Accessories	User's Manual
	1x Pair moving antennas
	2x SATA cables
	1x M.2 screw
Warranty Information
Warranty	3 Year Warranty

Manufacturer's Site	Visit the manufacturer's website
Product Link	Visit the manufacturer's page for this product

Additional Information Reviews (9)

Great AM5 Motherboard - Edwin, 2 April 2026

This board offers great value for money and covers everything needed for a modern system, with enough headroom for future upgrades on the AM5 platform.
Awesome - Cam, 29 May 2025

Starting my first ever PC build and I could not think of any better motherboard to get me started. With AM5 support and 3 M.2 slots its future proof and gives plenty of space to upgrade storage down the line. Not to mention the clean design that's very appealing to the eye! I live south of Johannesburg and I received the product in record time. Its safe to say that I will be buying all my future parts from Wootware.
Rather look for something else - Lyall, 14 March 2025

I bought this motherboard less than a year ago (2024) and it failed on me because of the load shedding introduced this year (2025).
Now I didn't use a surge protector? Yes, that my fault. But let me say this...

I had a Gigabyte GA-Z97-D3H (DDR3 RAM) motherboard that survived the "rolling blackouts" we had during the period of 2021 and 2022. 2022 had 208 days of load shedding. My old motherboard survived all this "without a surge protector"!

So, I cannot give this motherboard a pass. Also, the onboard Bluetooth is extremely bad. Driver issues, bad connections, sometime just do not connect. It's better just to buy a cheap dongle. All the other features on the board are fine though.
First AM5 Build - Bradley, 12 March 2025

Great product, highly recommended for those upgrading to AM5 and as always exceptional service from Wootware!
Highly recommend - Miguel, 13 February 2025

Easy to build with and high quality. The only issue I had was that I pulled the USB 3.2 plastic seat on the USB 3.2 header completely off the board when trying to unplug the cable, luckily, I was able to re-attach the plastic seat back over the pins without breaking anything, but this was more the fault of inexperience rather than the quality of the product.
Gaming Build - Rishane, 3 January 2025

Board does not disappoint. GCC (desktop) software allows you to tune fans and select RGB lights individually or in sync.
Going AM5 - Christo, 2 December 2024

This was part of my "upgrade into AM5", away from intell-11. Always been a Gigabyte fan, and this board does not dissappoint.
Home PC - Juan, 21 November 2024

Great Graphics quality and rendering super! Layout and slots provide awesome functionality and upgrade ability. Great speed and value with my new setup. Moar Memory is always great \o/
Exceptional - Daniel, 23 July 2024

I never truly realised the amount of features this board provides for the price. It has bluetooth, wifi and this may be a small thing, but the NVMe slots have a neat little plastic pin which means you don't need to use a screw. It blew my mind.
