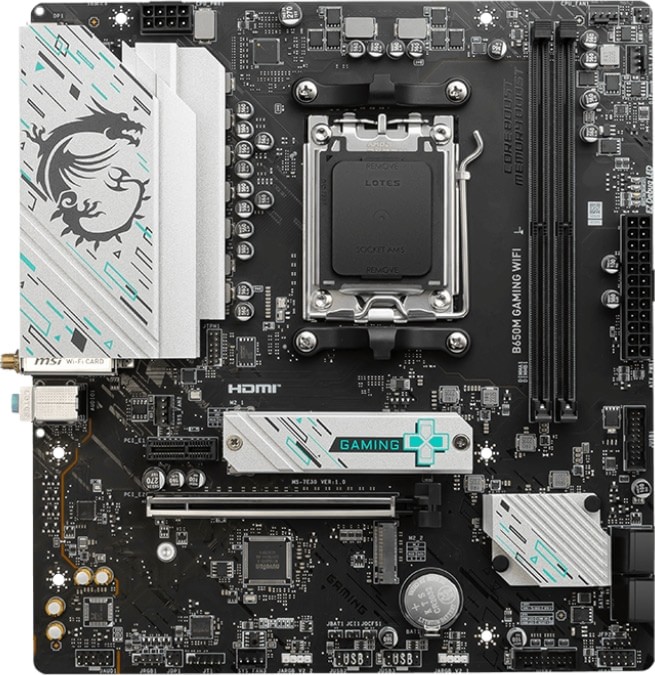

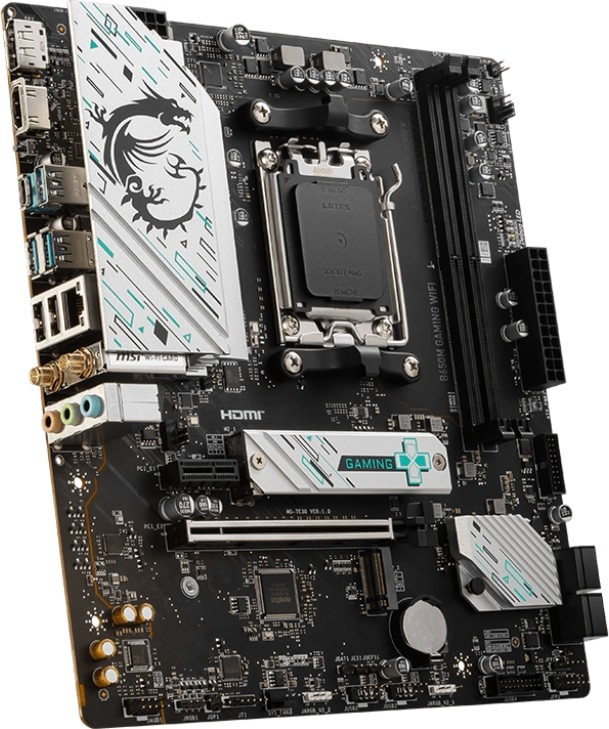

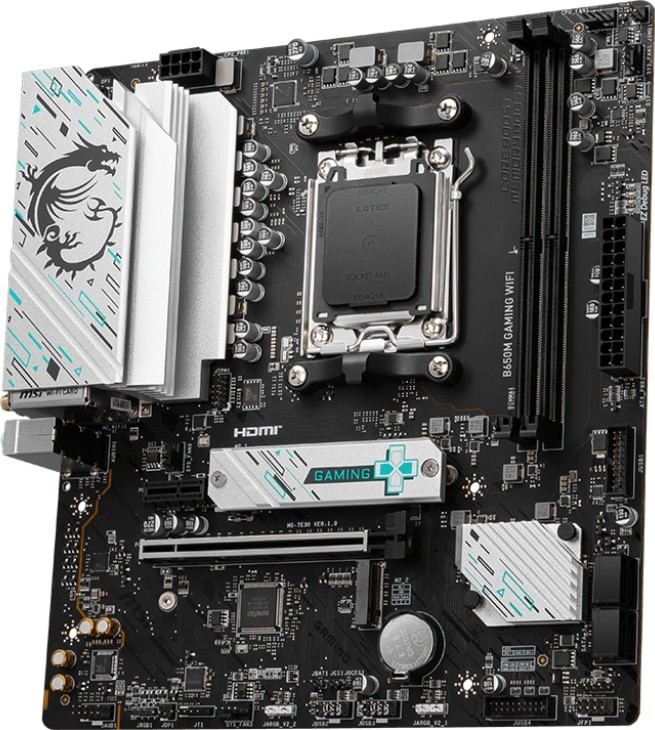

MSI B650M GAMING WIFI AMD B650 Ryzen Socket AM5 Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

MSI B650M GAMING WIFI AMD B650 Ryzen Socket AM5 Micro-ATX Desktop Motherboard

Product ID: 47039

✅ Please note: There are optional configurations available below. Simply click on an option to include it with your purchase.

Optional CPU:
AMD Ryzen 5 7600 5.1GHz 6-Core AM5 Desktop CPU

R 3,999.00
- View
AMD Ryzen 5 7600X 5.30GHz 6-Core AM5 Desktop CPU (Out of Stock)

R 4,599.00
- View
AMD Ryzen 7 7800X3D 5.0GHz 8-Core AM5 Desktop CPU

R 8,499.00
- View

Optional RAM:
G.Skill Trident Z5 NEO RGB 32GB (2x16GB) DDR5-6000MHz CL30 1.35V Black Desktop Memory

R 11,599.00
- View
G.Skill Trident Z5 NEO 64GB (2x32GB) DDR5-6000MHz CL30 1.40V Black Desktop Memory

R 19,499.00
- View

Optional Cooler:
ID-Cooling FROZN A610 BLACK 120mm Single-Tower Black PWM CPU Cooler

R 579.00
- View
ID-Cooling FROZN A620 BLACK 120mm Dual-Tower Black PWM CPU Cooler

R 799.00
- View

In stock with Supplier

Lead time before dispatch; 1 - 2 business days

4.65

3 Review(s) | Add Your Review

- Micro-ATX Form Factor
- AMD B650 Chipset
- Socket AM5
- Supports Ryzen 7000 & 8000-Series Processors
- Flash BIOS Button Supports Future Processors
- 2x DDR5 DIMM Slots, Supports Up To 128GB (2x64GB)
- Supports DDR5-7800 (OC)
- Supports AMD EXPO DDR5 Modules
- 1x PCIe 4.0 x16 Slot (x16 Electrical)
- 1x PCIe 3.0 X1 Slot
- 2x M.2 2280 PCIe 4.0 x4 NVMe SSD Slots
- 4x SATA 3.0 Ports
- 1x USB 5Gbps Type-C Port
- 3x USB 5Gbps Type-A Ports
- 2x USB 2.0 Type-A Ports
- 1x HDMI 2.1 Port
- 1x DisplayPort 1.4 Port
- 3x 3.5mm Audio Jacks (Line In, Line Out, Microphone)
- 2x SMA Connectors
- Realtek 2.5 Gigabit Ethernet RJ-45 LAN
- WiFi 6E Tri-Band Adapter, Bluetooth 5.3
- Realtek ALC897 High-Definition Codec
- MSI EZ Debug LED Diagnostic LEDs
- MSI Flash BIOS Button
- M.2 Shield Frozr
- MSI Mystic Light RGB Sync
- MSI Center Software
- Supports Windows 11
- 3 Year Warranty

91 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R2,748.00

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (3)

Product Description

SPECIFICATIONS
Brand	MSI
Series	Gaming Series
Model	B650M GAMING WIFI
CPU Support	Supports Ryzen 7000 & 8000 Series Processors
Chipset	AMD B650 Chipset
Memory Support
AMD B650 Chipset	2x DDR5, Maximum Memory Capacity 128GB
	Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MT/s
	Max. overclocking frequency:
	1DPC 1R Max speed up to 7800+
	1DPC 2R Max speed up to 6400+
Video
DisplayPort	1x DisplayPort 1.4 Port, supporting a maximum resolution of 3840x2160@ 60Hz, supports HDCP, HDR
HDMI	1x HDMI 2.1 Port, supporting a maximum resolution of 3840x2160@ 60Hz, supports HDCP, HDR
HDMI	Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 4.0 x16 Electrical Slot (x16 Physical) (PCIEX16)
AMD B650 Chipset	1x PCIe 3.0 x1 Electrical Slot (x16 Physical)
Slot Configurations	PCIEX16 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x8 mode
Slot Configurations	PCIEX16 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4 mode
Storage
CPU Direct	M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
CPU Direct	M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
AMD B650 Chipset	4x SATA 6Gbps connectors
	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
	RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Storage Configurations	M.2_1 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
	M.2_1 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
	M.2_2 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x2 SSDs
Networking
LAN	Realtek 2.5 Gigabit LAN 10/100/1000/2500Mbps
WiFi	WiFi 6E 2x2 MIMO Tri-Band Adapter
Bluetooth	Bluetooth 5.3
Audio
Codec	Realtek High-Definition Audio Codec
Codec	Support for 7.1 Surround with front-panel jack retasking
Connectivity
Ports	1x USB 5Gbps Type-C Port
	3x USB 5Gbps Type-A Ports
	2x USB 2.0 Type-A Ports
	1x HDMI 2.1 Port
	1x DisplayPort 1.4 Port
	3x 3.5mm Audio Jacks (Line In, Line Out, Microphone)
	2x SMA Connectors
	1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
Buttons	1x Flash BIOS button
General
Internal Connectors	1x Power Connector(ATX_PWR)
	1x Power Connector(CPU_PWR)
	1x CPU Fan
	3x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	2x Addressable V2 RGB LED connector (JARGB_V2)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0 ports
	4x USB 5Gbps Type A ports
LEDs	4x EZ Debug LEDs
I/O Controller	NUVOTON NCT6687D-R Controller Chip
BIOS	1x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, ACPI 6.4, SMBIOS 3.4
Form Factor	Micro-ATX Form Factor, 244 x 226mm (H x W)
Operating System Support	Windows 10 64-bit
Operating System Support	Windows 11 64-bit (recommended)
Boxed Accessories	Quick Install Guide
	1x WiFi antenna
	1x SATA cables
	1x I/O Shield
	2x EZ M.2 Clip packages
Warranty Information
Warranty	3 Year Warranty
